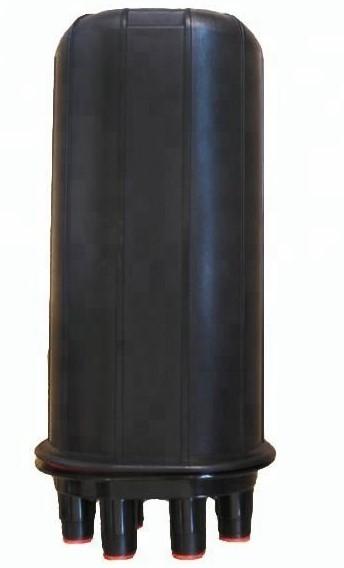

FTTB FTTX FTTH Equipment Outside Vertical Fiber Optic Splice Closure Box
FTTB FTTX FTTH Equipment Outside Vertical Fiber Optic Splice Closure Box
FTTB FTTX FTTH Equipment Outside Vertical Fiber Optic Splice Closure Box
FTTB FTTX FTTH Equipment Outside Vertical Fiber Optic Splice Closure Box
Specifications
Brand Name :
Fuji
Model Number :
FOSC-001
Certification :
ROHS, Rp UL, ISO
Place of Origin :
Wuhan, China
MOQ :
1pcs
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10,000 pcs per month
Delivery Time :
7~10 work days
Packaging Details :
plastic zip bag and carton
Type :
Vertical
Ports :
6
Diameter of fiber :
8-21 (mm)
Net weight :
3.8-4.5 (kgs)
Description

Related ProductsFTTH FTTB FTTX Outdoor Vertical Fiber Optic Splice Closure Box

Specification

The Optic Fiber Splice Closures can be used aerial,underground,wall-mounting,duct-mounting,handhole-mounting..The ambient temperature ranges from -40 to 65°C.

Dimension and capacity

Outside dimension (HxD 460x190 (mm)
Weight (excluding outside box) 2.5-3.2 (kgs)
Number of inlet/outlet ports 4 pieces in general
Diameter of fiber cable 8—16 (mm)
Capacity of FOSC Bunchy: 12—96(Cores)

Main components

No components Quantity Usage Remarks
1 Housing 1 piece on left and right side respectively (total 2 pieces) Protecting fiber cable splices in whole Height x Diameter
230mm x 150mm
2 Fiber optic splice tray (FOST)

max. 4 trays (bunchy)

max. 4 trays (ribbon)


Fixing heat shrinkable protective sleeve and holding fibers		 Suitable for:
Bunchy:12, 24 (cores)
Ribbon: 3(pieces)
3 Foundation 1set Fixing internal and connecting external structure
4 Plastic hoop 1set Fixing between left and right housing
5 Gasket ring 1set Big gasket ring is used to seal between left housing and righting housing.
Small gasket ring is used to seal inlet/outlet tube		 1 piece of big gasket ring, 4 pieces of small gasket ring
6 Pressure testing valve 1set After inject air, it is used for pressure testing ,sealing testing Configuration as per requirement
7 Earthing deriving device 1set Deriving metallic parts earthing connection Configuration as per requirement
