SM / OM3 / OM4 Fiber Optic Cable MTP / MPO Jumper To Duplex LC Uniboot Harness / Breakout Cable
SM / OM3 / OM4 Fiber Optic Cable MTP / MPO Jumper To Duplex LC Uniboot Harness / Breakout Cable
Specifications
Brand Name :
FUJIOPTICS
Model Number :
FUJI-M004
Certification :
ROHS ,CE ,ISO
Place of Origin :
MADE IN CHINA
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs
Delivery Time :
5-8 working days
Packaging Details :
PE Bag & Carton
Model Number: :
MPO(OM3/OM4)
Cable diameter size: :
0.9mm/2.0mm/3.0mm
Fiber Count: :
8/12/24 fiber
Connector Type: :
MPO/MTP
End facce type: :
PC/APC
Fiber Model: :
Single/Multi mode
Description

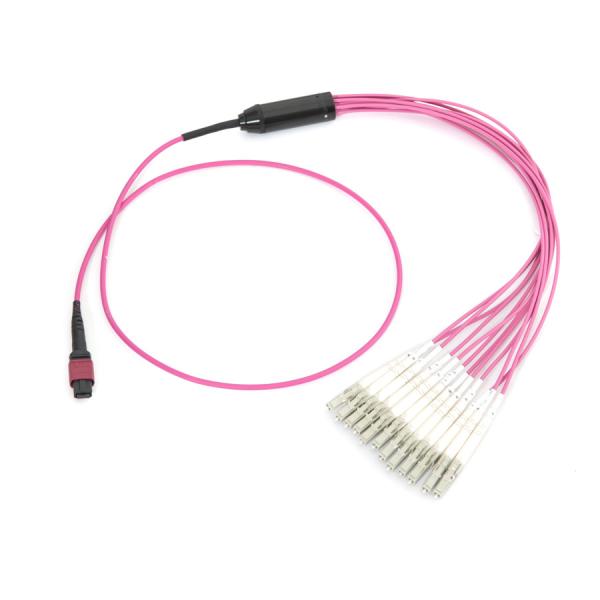

MTP / MPO TO LC HARNESS

Product Description:
MTP / MPO harness assemblies are used to fanout the 8-, 12-or 24-fiber MTP connectors terminated on trunk cables into LC connectors. It is used to transitioning from trunk backbone assemblies to fiber rack system. The ruggedized 2mm or 3mm furcation legs provide a more rugged solution than products with 900um legs, in turns provide excellent installation convenience and longer lifespan.
FEATURES AND APPLICATIONS

Deploy into the transition between trunk backbone assemblies and fiber rack system
- Wide employment of high density infrastructure

MTP/MPO on one end in 8-, 12-or 24-fiber interface, with LC single-fiber connectors on another end
- Provides an efficient pathway space in operation

LC Single-fiber connector available in forms of Simplex or Duplex channeling
- High Flexibility with reducing installation time and cost

Customized furcation length to cater for different installation situations
- Enhances installation convenience

Ruggedized furcation legs: Round fanoutkit with 2.0 mm or 3.0 mm legs to single-fiber connectors
- For space saving installation and longer lifespan

Available in different fiber modes including singlemode(OS2) & multimode (OM1 ~ OM5) with customized length and structure

- Satisfies client's needs in different industries

DETAILS

MTP / MPO Termination

SM / OM3 / OM4 Fiber Optic Cable MTP / MPO Jumper To Duplex LC Uniboot Harness / Breakout Cable

Generic Connector Termination

SM / OM3 / OM4 Fiber Optic Cable MTP / MPO Jumper To Duplex LC Uniboot Harness / Breakout Cable

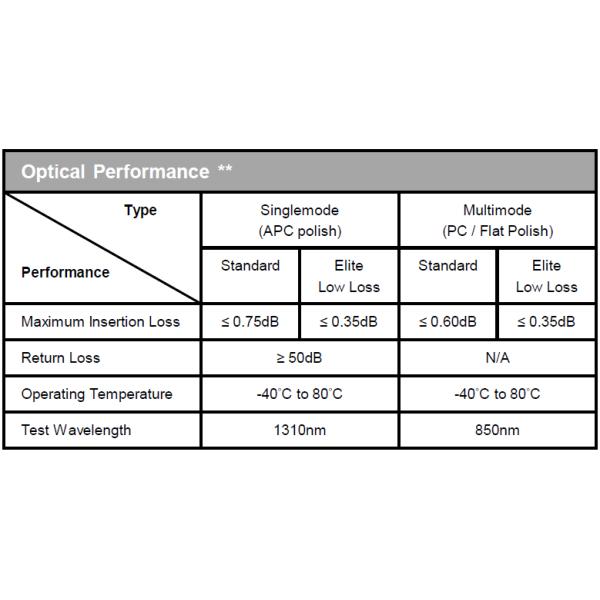

** Fujioptics works with customer to provide highly customized products with different specifications & required optical performance in a flexible pricing scheme. The above optical performance is one of our product tier only, please contact our sales for more details.

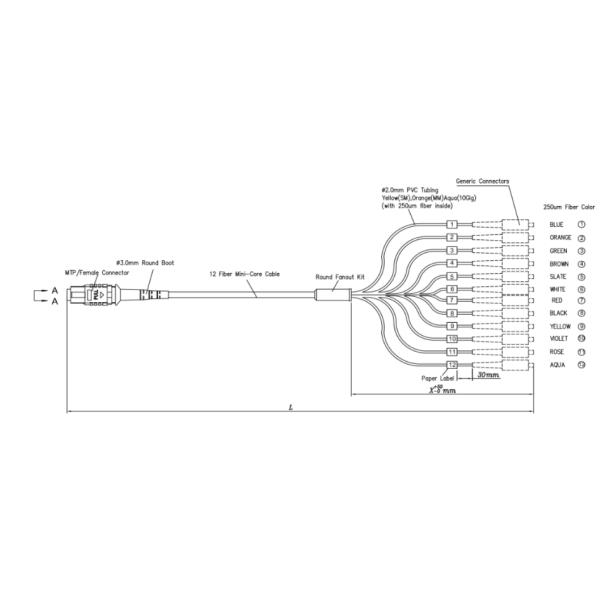

ASSEMBLY STRUCTURE ILLUSTRATION

Example:

Ordering code: FUJI-12-B-S-SM-MR-0500-002-M-4

Item Description: Harness Assembly, 12-Fiber, MTP Female (no pin) to Simplex LC, Singlemode, Mini-Core Riser (OFNR), Furcation Length 500mm, Overall Length 2 Meters, No Pulling Eye

SM / OM3 / OM4 Fiber Optic Cable MTP / MPO Jumper To Duplex LC Uniboot Harness / Breakout Cable

SM / OM3 / OM4 Fiber Optic Cable MTP / MPO Jumper To Duplex LC Uniboot Harness / Breakout Cable
