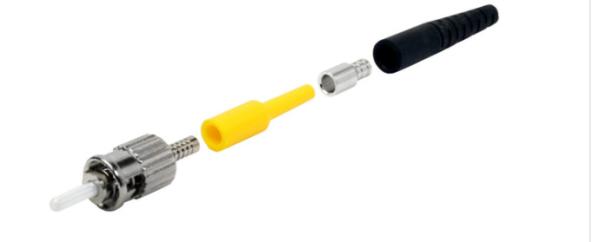

ST - PC Simplex Fiber Optic Connectors 0.9mm Pre Polished High Precision
ST - PC Simplex Fiber Optic Connectors 0.9mm Pre Polished High Precision
Specifications
Brand Name :
FUJI/OEM
Model Number :
FUJI-FC-ST
Certification :
ROHS ISO CE
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs
Delivery Time :
3-7 working days
Packaging Details :
PE or Carton Box
Product Name :
Fiber Connector ST
Color :
Black
Connnector Type :
ST
Surface Type :
PC
Cable Type :
Simplex
Description

Fiber Optic Connector ST - PC Simplex 0.9mm Pre-polished Fiber Optic Connectors Multimode

Optical fiber connectors are used to join optical fibers where a connect/disconnect capability is required. Due to the polishing and tuning procedures that may be incorporated into optical connector manufacturing, connectors are often assembled onto optical fiber in a supplier’s manufacturing facility. However, the assembly and polishing operations involved can be performed in the field, for example, to terminate long runs at a patch panel.

ST connectors have a key which prevents rotation of the ceramic ferrule, and a bayonet lock similar to a BNC shell. The single index tab must be properly aligned with a slot on the mating receptacle before insertion; then the bayonet interlock can be engaged, by pushing and twisting, locking at the end of travel which maintains spring-loaded engagement force on the core optical junction.

Features:
Low insertion loss and high return loss
Nickel plated brass body
Telcordia style boots
High precision alignment
Free-floating ceramic ferrule
Precision anti-rotation key

Applications:
Telecommunication

NetworksInstrumentation

CATV Networks

Active Device Termination

EDFA

Specifications:

Insertion loss SM ≤0.20 dB
MM ≤0.25dB
Return loss P C ≥45 dB
UPC ≥50dB
APC ≥60 dB
Durability <0.20 dB typical change, 1000 mating
Ferrule hole sizes SM: 125.0+1/-0um concentricity:≤1.0um
125.5+1/-0um ≤1.0um
126.0+1/-0um ≤1.0um
MM:125 um concentricity:1≤3 um
127 um ≤3 um
128 um ≤3 um
Operating temperature

-40~80°C
Product Name : Optical Fiber Connector Parts Sc Optic Fiber Connector
Model: ST 1/2-3/4-5
1. Connector ST (LC, FC, SC, MPO, E2000 etc, all kind of connector and part available)
2. End Face PC, UPC, APC.
3. Fiber Type SM, OM1,OM2, OM3, OM4
4. Housing color G=Green; B=Blue; E=Beige; A=Aqua; V=Violet
5. Boot size type 0.9mm, 1.2mm, 1.6mm, 2.0mm, 3.0mm,
OEM Service

SPECIAL PRICE FOR BIG ORDER

ST - PC Simplex Fiber Optic Connectors 0.9mm Pre Polished High Precision

FAQ:

Q1, What is your delivery time?

A: Generally, it will take 3-7 days after deposit payment.

The specific delivery time depends on the items and the order quantity.

Q2, Can you produce according to the samples or drawing?

A: Yes, we can produce by your samples or technical drawings. We also can design and open the mold for you.

Q3,What is your sample policy?

A, We can supply free sample for comment fiber optic devices, but the customers have to pay the courier cost.

Q4, Do you test all your goods before delivery?

A, Yes, all goods are 100% tested before final packing and delivery.

Test reports can be provided if necessary.

Q5, How do you assure the long-term business and keep good partnership?

A, Firstly, we keep persistent improvement to make better quality products and provide better service while maintain the competitive prices to ensure the customers’ benefit.

Besides, we respect every customer as our friends and appreciate for every small or big order.

Welcome to contact us for any requests —Your trustworthy partners on fiber optics/OPTICO
