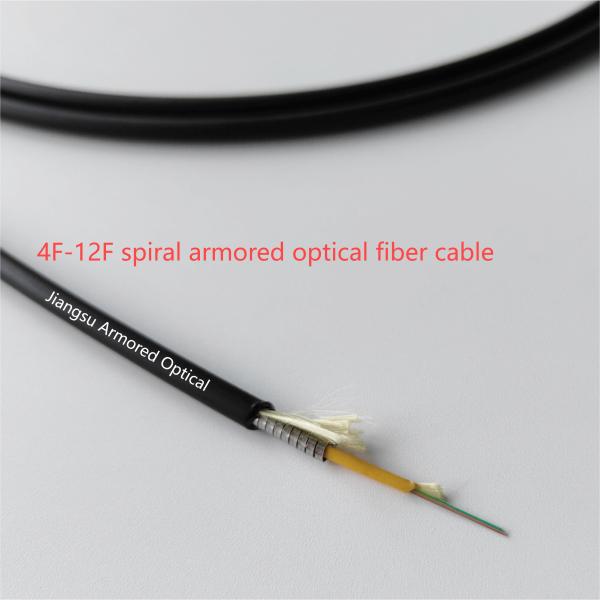

4F-12F 5.0mm Spiral Micro Armored Fiber Cable Black LSZH Jacket FTTH Rodent Resistant
4F-12F 5.0mm Spiral Micro Armored Fiber Cable Black LSZH Jacket FTTH Rodent Resistant
4F-12F 5.0mm Spiral Micro Armored Fiber Cable Black LSZH Jacket FTTH Rodent Resistant
4F-12F 5.0mm Spiral Micro Armored Fiber Cable Black LSZH Jacket FTTH Rodent Resistant
Specifications
Brand Name :
JIANGSU ARMORED
Model Number :
4F-12F-LSZH-5.0
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1000M
Price :
Negociation
Payment Terms :
T/T
Supply Ability :
30km per day
Delivery Time :
According to the quantity
Packaging Details :
1000m or 2000m per drum, with or without carton
Name :
4F-12F Micro Armored Fiber Cable
Outer jacket :
LSZH
Color :
Black
Inner Jacket :
Orange LSZH
Application :
FTTH, FTTB,
Armored Tube Material :
Stainless steel
Diameter :
5mm
Fiber Mode :
Single Mode and Multi Mode
Description

4F-12F 5.0mm Spiral Micro Armored Fiber Cable, Black LSZH Jacket FTTH Rodent Resistant

Spiral armoured fiber optical cables protect fiber from physical damage, so they can be applied for telecommunications networks,

like FTTA, FTTH, FTTB, FTTR, etc.

Spiral armored fiber cables are widely used in the industrial environment of cables exposed to high temperature, heavy machinery.

Spiral armored fiber cables provide protection of mechanical damage, like wear,crush, and impact.

Item

Parameter

Fiber count

4 cores -12 cores

Inner jacket material

LSZH

Armored tube

SUS material

Cable diameter

5.0±0.2mm

Cable jacket

black LSZH

Temperature

-40℃~80℃

Crush (N/10cm)

Long-term 1000, short-term 3000

Bend radius (mm)

Dynamic 20D, Static 10D

4F-12F 5.0mm Spiral Micro Armored Fiber Cable Black LSZH Jacket FTTH Rodent Resistant

4F-12F 5.0mm Spiral Micro Armored Fiber Cable Black LSZH Jacket FTTH Rodent Resistant

For Patch Cord Assembly

4F-12F 5.0mm Spiral Micro Armored Fiber Cable Black LSZH Jacket FTTH Rodent Resistant

4F-12F 5.0mm Spiral Micro Armored Fiber Cable Black LSZH Jacket FTTH Rodent Resistant

Feature

  • Micro armored tube used to decrease the outer diameter and cable weight, also convenient for cabling and installation.
  • Cable using high property aramid yarn, increasing tension property, and fit for long distance application.
  • Cable using spiral metal armored layer with best crush property, and cable is very flexible and easy bend.
  • Different jacket material fit for different environments.
  • UV-resistant

Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.

Service

  • We have nearly 200 sets armored tube equipment, can provide products in time.
  • We’re factory, reasonable prices can be supplied.
  • Our production team has more than 10 years producing experience, we can provide suggestion or solution when customers facing problem about cabling.
  • We can provide suggestion for micro armored fiber optic cable choosing.
