Ftth Gepon GPON ONT ONU Wifi Catv Onu Like ZTE Gpon Compatible Fiberhome Huawei
Ftth Gepon GPON ONT ONU Wifi Catv Onu Like ZTE Gpon Compatible Fiberhome Huawei
Ftth Gepon GPON ONT ONU Wifi Catv Onu Like ZTE Gpon Compatible Fiberhome Huawei
Ftth Gepon GPON ONT ONU Wifi Catv Onu Like ZTE Gpon Compatible Fiberhome Huawei
Specifications
Brand Name :
OPTFOCUS
Model Number :
X622-CW
Place of Origin :
Guangdong, China
MOQ :
500
Price :
28-32$
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000PCS
Delivery Time :
5-7 work days
Packaging Details :
box
Type :
FTTx Solutions
Use :
FTTH
Color :
White
Power supply :
12V DC
Model :
OPTFOCUS OFSX622-CW
Brand :
OPTFOCUS
Wavelength :
TX 1310nm, RX 1490nm; CATV 1540~1560nm
Warranty :
3 Years
Connector Type :
SC/UPC
XPON :
GPON EPON
Feature :
2020 NEW STYLE+1GE+1FE+CATV+WIFI ONU
Description

OFSX622-CW

1GE+1FE Ethernet ports with Wifi WDM CATV XPON ONU for FTTH solution

Product Description

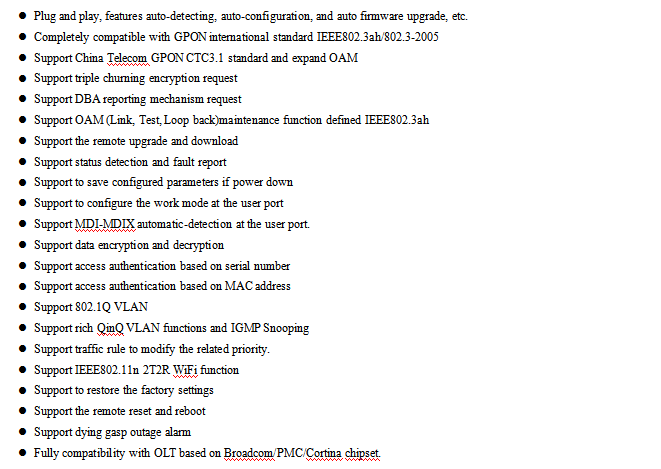

Features

Ftth Gepon GPON ONT ONU Wifi Catv Onu Like ZTE Gpon Compatible Fiberhome Huawei

Specification

Attributes
X622-CW
Power Supply
12V,1A
Full Loaded Power
Consumption
<=7W
Outline Dimension
167*119*32mm
Weight
<=0.6kg
Environmental requirements
Storage temperature:-30ºC~70ºC
Working humidity:10%~85%
Ethernet
Standard

IEEE802.3ah/802.3-2005
WIFI
Antenna
2T2R Mode, 5DBI Gain ,Frequency:2.4G ,external antenna
EIRP
Max 25dBm
CATV

Tech feactures
Description
Optical wavelength
1540-1560nm
Optical input range
0-15DBm
Optical return loss ≥45DB
Bandwidth 45-1000MHz
Flatness +/-1DB
RF output level ≥72dBuv
AGC control range 0-14DBm
RF output return loss ≥14DB
Related product

Ftth Gepon GPON ONT ONU Wifi Catv Onu Like ZTE Gpon Compatible Fiberhome Huawei

Packaging & Shipping

Ftth Gepon GPON ONT ONU Wifi Catv Onu Like ZTE Gpon Compatible Fiberhome Huawei

Our Services

Ftth Gepon GPON ONT ONU Wifi Catv Onu Like ZTE Gpon Compatible Fiberhome Huawei

Company Information

Products Test Machine

Ftth Gepon GPON ONT ONU Wifi Catv Onu Like ZTE Gpon Compatible Fiberhome Huawei
