3 Port Ethernet Switch Powered By POE Excellent Heat Elimination Without Cooling Fan
3 Port Ethernet Switch Powered By POE Excellent Heat Elimination Without Cooling Fan
3 Port Ethernet Switch Powered By POE Excellent Heat Elimination Without Cooling Fan
3 Port Ethernet Switch Powered By POE Excellent Heat Elimination Without Cooling Fan
3 Port Ethernet Switch Powered By POE Excellent Heat Elimination Without Cooling Fan
3 Port Ethernet Switch Powered By POE Excellent Heat Elimination Without Cooling Fan
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-PE-SF1T2-20
Place of Origin :
China (Mainland)
MOQ :
1 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5
Price :
Negotiable
Multi-mode :
2M
Single-mode :
20/40/60/80/100KM
Fiber port :
SC/ST/FC Optiona
Bandwidth :
1Gbps
Packet Buffer Memory :
1M
Packet Forwarding Rate :
148800pps/port
MAC Address Table :
1K /port
PoE ports :
2 port support PoE
Description

OFS-PE-SF1T2-20

2ports100M PSE + 1port 100M 20km Fiber Optical Ethernet switch

Description:

OFS-PE-SF1T2-20 Optical Ethernet switch with 1*100Mbps Optical fiber ports and 2*10/100Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.

OFS-PE-SF1T2-20’s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, VoIP phone, wireless AP and other PoE supported devices.. Power input also chooses industry-standard types of power.

Technical Specifications

Product Name

2-port 10/100Mbps + 1-port 100Mbps Fiber

Product Model

OFS-PE-SF1T2-20

Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x;

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

Fiber Media

Multi-mode: 2KM

Single-mode: 20/40/60/80/100KM

Fiber port :SC/ST/FC Optional

Performance Specification

Bandwidth: 1Gbps
Packet Buffer Memory:1M
Packet Forwarding Rate:148800pps/port
MAC Address Table:1K /port

PoE Specification

PoE Standard: IEEE802.3af/ IEEE802.3at

PoE ports: 2 port support PoE

Power Output:

Max. 15.4 watts (IEEE 802.3af)

Max. 30 watts (IEEE 802.3at)

PoE port Auto detect AF/AT devices

Output Voltage: DC48V

Power Pin Assignment:4/5+;7/8-

Power Type: End-span( Mid-span optional)

Forwarding Mode

Store-and-Forward

LED Indicators

Power: PWR; Link;POE ; Link/Act

Power Supply

Input Voltage: DC52V (48~55V)

Feature:

2 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps Fiber port.

2 Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)

Automatic MAC address learning and aging

10/100Mbps Auto-negotiation , auto-MDI-MDI-X

LED indicators for monitoring power/link/activity

Supports10/100Mbps-Full/Half-duplex

Supports Wall-mount and DIN-Rail installation ,Optional.

Supports Broadcast Storm Control

Supports Relay output for power failure

Excellent heat elimination without cooling fan.

Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.

Harsh environment or higher requirement

-10℃-55℃operating temperature range.

Other Specifications :

Working Environment

Working temperature: -10~55℃ ; Storage temperature: -20~75℃

Relative Humidity: 5%~95 %( no condensation)

Installation

DIN-Rail or Wall mounts,Optional,Default device is not

Packing List

1× Media Converter

1×User Manual/Certificate of quality/Warranty card

1×power adapter

MTBF

100,000 hours

Weight & Size

Product Weight: 0.5 KG

Packing weight: 1.1 KG

Product size (L×W×H): 140mm×93mm× 28mm

Packing size(L×W×H): 215mm×138 mm× 56mm

Warranty

1-years

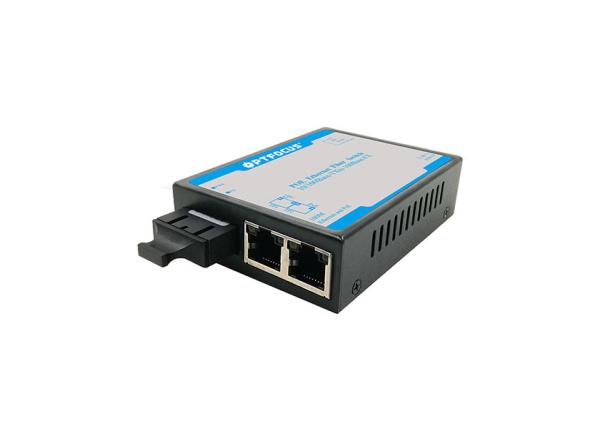

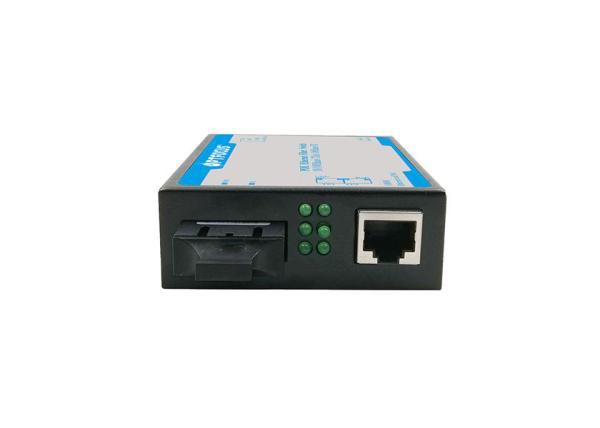

Physical Pic Reference :

Package Dimension:

Solutions

Ordering Information:

model

Product description

OFS-PE-SF1T2-20

2* 10/100Base-T RJ45,1* 100M fiber ports,SC,double fiber1310nm,20km,PoE,external PS

OFS-PE-SF1T2-xx

2* 10/100Base-T RJ45,1* 100M fiber ports,SC,double fiber,.max optical fiber distance from 20 to 120 km, “xx” for the amount of distance,PoE,external PS,PoE,external PS

OFS-PE-SF1T2A-20

2* 10/100Base-T RJ45,1* 100M fiber ports,SC,Single Fiber 1310nm,20km,PoE,external PS

OFS-PE-SF1T2B-20

2* 10/100Base-T RJ45,1* 100M fiber ports,SC,Single Fiber 1550nm,20km,PoE,external PS

OFS-PE-SF1T2A/B-xx

2* 10/100Base-T RJ45,1* 100M fiber ports,Single Fiber ,One set of “A” must be connected with another set of “B” for using.max optical fiber distance from 20 to 120 km, xx for the amount of distance,PoE,external PS

FAQ

1. Is there a minimum order quantity?
No, you can feel free to order any quantity of any product.

2. Do your products come with warranty?
Yes,we provide 1 year warranty for all our products from the date of shipment.


3. How much charge voltage can reach?
Battery charging voltage should be 13.8V only high charging and low cutoff 10V.

4. Is your switch customizable for rack or DIN rail mountable?
Yes, of course, but we have the MOQ. Please contact with out server for details.

5. Does your network management switch support ring redundancy?
With STP (Spanning Tree) function, ring redundancy is supported. The network management type we produce can support this function.
