Single Mode Fiber Optic Switch 2 RJ45 2 SFP Ports Auto Negotiation 5% - 90% Humidity
Single Mode Fiber Optic Switch 2 RJ45 2 SFP Ports Auto Negotiation 5% - 90% Humidity
Single Mode Fiber Optic Switch 2 RJ45 2 SFP Ports Auto Negotiation 5% - 90% Humidity
Single Mode Fiber Optic Switch 2 RJ45 2 SFP Ports Auto Negotiation 5% - 90% Humidity
Single Mode Fiber Optic Switch 2 RJ45 2 SFP Ports Auto Negotiation 5% - 90% Humidity
Single Mode Fiber Optic Switch 2 RJ45 2 SFP Ports Auto Negotiation 5% - 90% Humidity
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-GSF2T2
Place of Origin :
China(Mainland)
MOQ :
1 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5
Price :
Negotiable
Ports :
2 RJ45+ 2 SFP
Uplink :
10/100/1000M autom negotiation
Fiber port :
2*1000M SFP port
Bandwidth :
8Gbps
Max power :
5W
Environment temperature :
0 ~ +55℃
Storage temperature :
-20 ~ +70℃
Humidity :
5% ~ 90%
Description

OFS-GSF2T2

2ports 10/100/1000M + 2ports 1000M SFP Fiber Switch

Feature:

2 Port 10/100/1000Mbps with Auto Uplink™ , 2 port 1000Mbps SFP Slot

Automatic MAC address learning and aging

10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X

LED indicators for monitoring power/link/activity

Supports10/100/1000Mbps-Full/Half-duplex

Supports Wall-mount and DIN-Rail installation ,Optional.

Supports Broadcast Storm Control

Excellent heat elimination without cooling fan.

Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.

Harsh environment or higher requirement

-10℃-55℃operating temperature range.

Description:

OFS-GSF2T2 series is a Layer 2 + Optical Ethernet switch with 2*1000Mbps SFP Optical fiber ports and 2*10/100/1000Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.

OFS-GSF2T2's high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc.

Technical Specifications

Product Name

2-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber

Product Model

OFS-GSF2T2

Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX/FX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Fiber Media

Multi-mode:550M- 2KM

Single-mode: 20/40/60/80/100KM

Performance Specification

Bandwidth: 8Gbps
Packet Forwarding Rate:1488000pps/port
MAC Address Table:1K

Forwarding Mode

Store-and-Forward

LED Indicators

Power: PWR;FX Link/Act;TP 1000(1-2);

TP Link/Act(1-2)

Power Supply

Adapter:

Input: AC100 ~ 250V, Output:DC5V 2A.

Max power

5W

Environment temperature

0 ~ +55℃

Storage temperature

-20 ~ +70℃

Humidity

5% ~ 90%

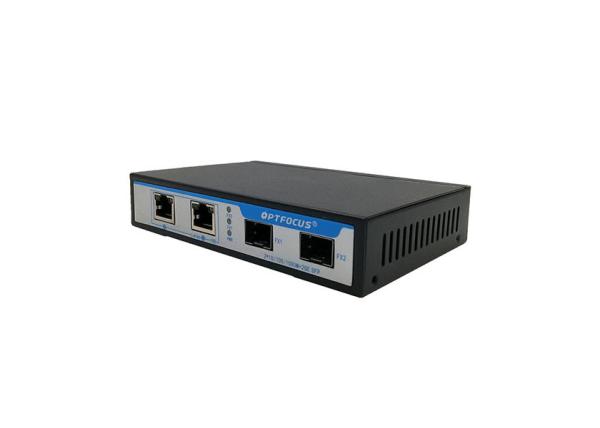

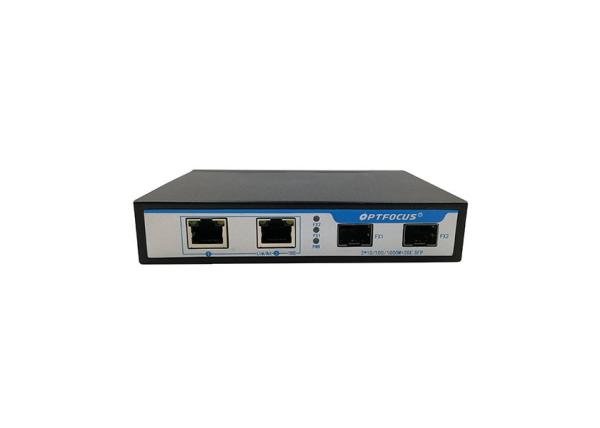

Physical Pic Reference :

Single Mode Fiber Optic Switch 2 RJ45 2 SFP Ports Auto Negotiation 5% - 90% Humidity

Chassis Dimension:

Single Mode Fiber Optic Switch 2 RJ45 2 SFP Ports Auto Negotiation 5% - 90% Humidity

Application

Single Mode Fiber Optic Switch 2 RJ45 2 SFP Ports Auto Negotiation 5% - 90% Humidity
