Lightweight Fiber Optic Gigabit Ethernet Switch 2*100Mbps Optical Ports 3*10/100Mbps RJ45 Ports
Lightweight Fiber Optic Gigabit Ethernet Switch 2*100Mbps Optical Ports 3*10/100Mbps RJ45 Ports
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-SF2T3-20
Place of Origin :
China(Mainland)
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5
Price :
Negotiable
MOQ :
1 pcs
Fiber port :
2*100M
Interface type :
SC/ST/FC Optional
Bandwidth :
1Gbps
Forwarding Mode :
Store-and-Forward
Dimensions :
26*70* 93mm
Weight :
0.5kg
Working temperature :
0 ~ +55℃
Humidity :
5% ~ 90%
Power Supply :
Input: AC100 ~ 250V, Output:DC5V 2A
Warranty :
1-years
Description

OFS-SF2T3-20
3ports 10/100M + 2port 100M SM 20KM Fiber Switch


Technical Specifications

Product Name

3-port 10/100Mbps + 2-port 100Mbps Fiber

Product Model

OFS-SF2T3-20

Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x;

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)

Fiber Media

Multi-mode: 2KM
Single-mode: 20/40/60/80/100KM
Fiber port :SC/ST/FC Optional

Performance Specification

Bandwidth: 1Gbps
Packet Buffer Memory:1M
Packet Forwarding Rate:148800pps/port
MAC Address Table:1K

Forwarding Mode

Store-and-Forward

LED Indicators

Power: PWR; FX Link;TP Link/Act

Power Supply

Input: AC100 ~ 250V,
Output:DC5V 2A.

Max power

4W

Environment temperature

0 ~ +55℃

Storage temperature

-20 ~ +70℃

Humidity

5% ~ 90%

Dimensions

26 × 70 × 93mm

Feature:
l 3 Port 10/100Mbps with Auto Uplink™ , 2 port 100Mbps Fiber port.
l Automatic MAC address learning and aging
l 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
l LED indicators for monitoring power/link/activity
l Supports10/100Mbps-Full/Half-duplex
l Supports Wall-mount and DIN-Rail installation ,Optional.
l Supports Broadcast Storm Control
l Excellent heat elimination without cooling fan.
l Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
l Harsh environment or higher requirement
l 10℃-55℃operating temperature range.

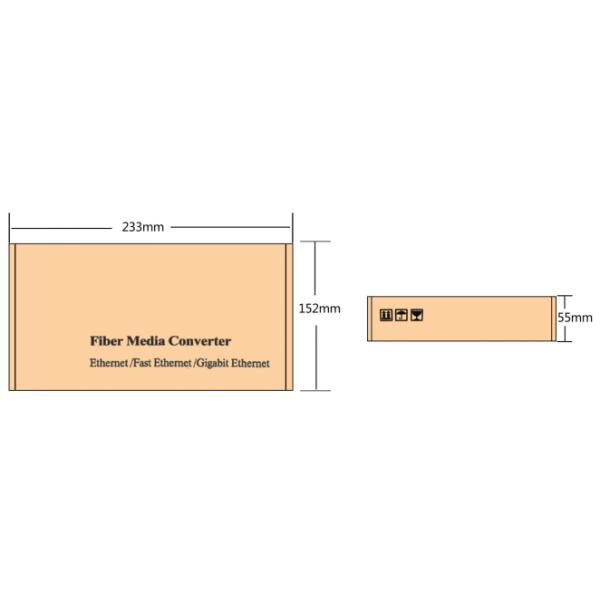

Package Dimension:

Lightweight Fiber Optic Gigabit Ethernet Switch 2*100Mbps Optical Ports 3*10/100Mbps RJ45 Ports

Lightweight Fiber Optic Gigabit Ethernet Switch 2*100Mbps Optical Ports 3*10/100Mbps RJ45 Ports

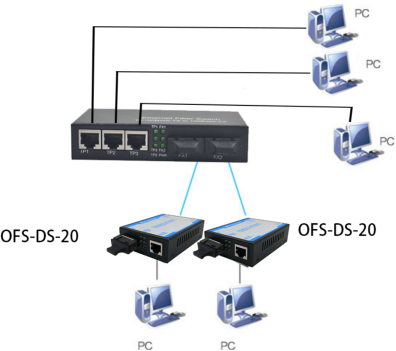

Application

Lightweight Fiber Optic Gigabit Ethernet Switch 2*100Mbps Optical Ports 3*10/100Mbps RJ45 Ports
