Lightweight Fiber Optic Managed Switch 2 Optical Ports 8 RJ45 Ports
Lightweight Fiber Optic Managed Switch 2 Optical Ports 8 RJ45 Ports
Lightweight Fiber Optic Managed Switch 2 Optical Ports 8 RJ45 Ports
Lightweight Fiber Optic Managed Switch 2 Optical Ports 8 RJ45 Ports
Lightweight Fiber Optic Managed Switch 2 Optical Ports 8 RJ45 Ports
Lightweight Fiber Optic Managed Switch 2 Optical Ports 8 RJ45 Ports
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-MGSF2T8
Place of Origin :
Shenzhen China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
5
Packaging Details :
1 pcs/ box
Installation :
DIN-Rail or Wall mounts,Optional,Default device is not
Packing List :
1× Switch 1×User Manual/Certificate of quality/Warranty card 1×power adapter
MTBF :
100,000 hours
Weight & Size :
Product Weight: 0.5 KG Packing weight: 1.1 KG Product size (L×W×H): 225mm× 121mm×35mm Packing size(L×W×H): 306mm×152mm×55mm
Warranty :
1-years
Environment temperature :
0 ～ +55℃
Storage temperature :
-20 ～ +70℃
Humidity :
5% ～ 90%
Description

OFS-MGSF2T8

8ports 10/100/1000M + 2ports 1000M SFP Fiber Switch

Description:

OFS-MGSF2T8 is a managed Layer 2 + Optical Ethernet switch with 2*1000Mbps Optical ports and 8*10/100/1000Mbps RJ45 ports. Fiber Optic Switch is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio. OFS-MGSF2T8’s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission. Fiber Optic Switch also features powerful Web-based.

"OP Ring Protection"(OPRP) , designed specifically for applications, to provide a fast Ethernet ring protection and recovery within 15ms. From the management console, uses can choose any port (normal Ethernet port or trunk port) to form an Ethernet ring for faster recovery and wider bandwidth.

Technical Specifications

Product Name 8-port 10/100/1000Mbps + 2-port 1000Mbps SFP Fiber
Product Model OFS-MGSF2T8
Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 100Base-T;IEEE802.3u;1000Base-TX;IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;

802.1Q VLAN Tag

802.3ad LACP

802.1D-2004 STP

802.1w Rapid STP

802.1s Multiple STP
Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)
Fiber Media

Multi-mode: 550M-2KM

Single-mode: 20/40/60/80/100KM
Performance Specification Bandwidth:20Gbps
Packet Buffer Memory:2M
Packet Forwarding Rate:1488000pps/port
MAC Address Table:4K
Forwarding Mode Store-and-Forward
LED Indicators Power: PWR; FX Link/Act;1000(1-8) ; Link/Act(1-8)
Power Supply

Input: AC100 ～ 250V,

Output:DC15V 2A.
Max power 5W

Feature:

  • 8 Port 10/100/1000Mbps with Auto Uplink™ , 2 port 1000Mbps SFP Fiber
  • Web-based network management interface
  • support Port-based VLAN, IEEE 802.1Q VLAN, simple network planning
  • OP Ring Protection (OPRP), Spanning Tree Protocol (STP) and Rapid Spanning Tree Protocol (RSTP) for Ethernet ring protection and quick recovery
  • Automatic MAC address learning and aging
  • 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
  • LED indicators for monitoring power/link/activity
  • Supports10/100/1000Mbps-Full/Half-duplex
  • Supports Wall-mount and DIN-Rail installation ,Optional.
  • Supports Broadcast Storm Control
  • Excellent heat elimination without cooling fan.
  • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
  • Harsh environment or higher requirement
  • -10℃-55℃operating temperature range.
  • The built-in 12V lead acid battery charging circuit

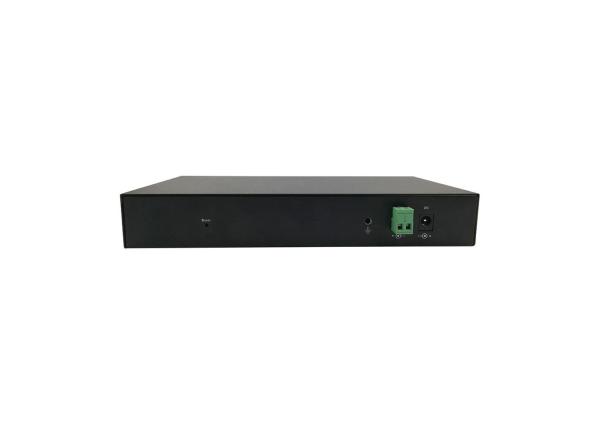

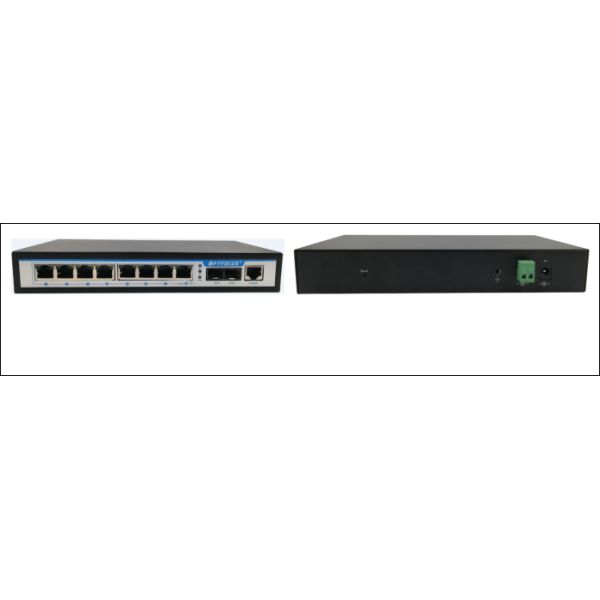

Physical Pic Reference :

Lightweight Fiber Optic Managed Switch 2 Optical Ports 8 RJ45 Ports

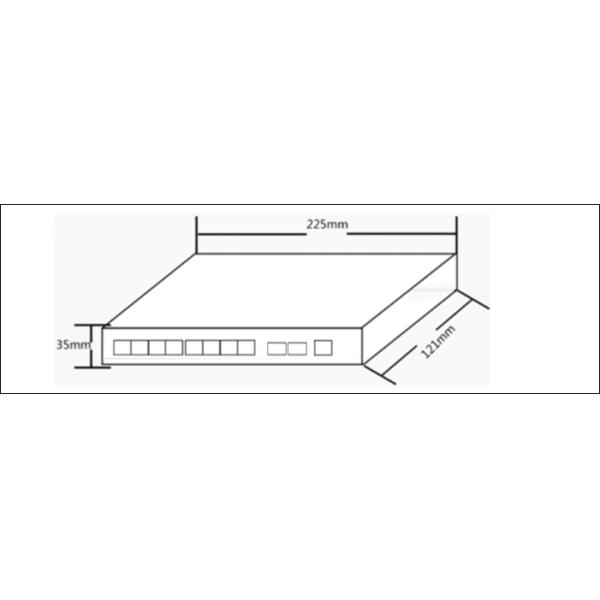

Chassis Dimension:

Lightweight Fiber Optic Managed Switch 2 Optical Ports 8 RJ45 Ports

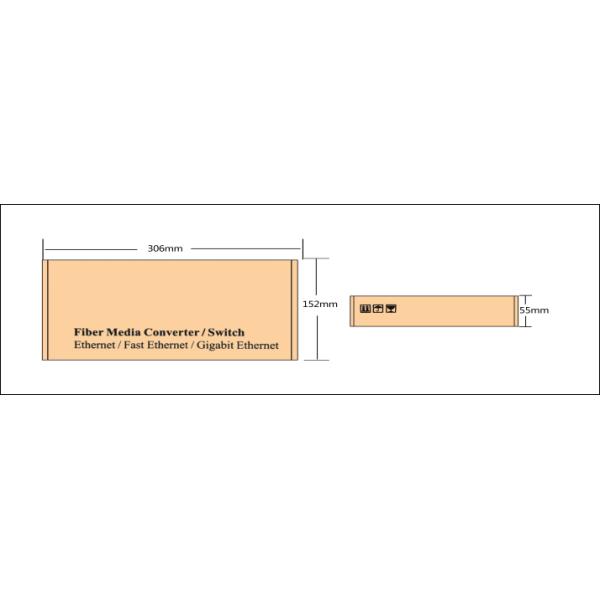

Package Dimension:

Lightweight Fiber Optic Managed Switch 2 Optical Ports 8 RJ45 Ports

Ordering Information:

model Product description
OFS-MGSF2T8 8* 10/100/1000Base-T RJ45,2* 1000M fiber SFP ports, without SFP module,WEB,external PS.
