Portable Optical Ethernet Switch 5 Port Support Broadcast Storm Control
Portable Optical Ethernet Switch 5 Port Support Broadcast Storm Control
Portable Optical Ethernet Switch 5 Port Support Broadcast Storm Control
Portable Optical Ethernet Switch 5 Port Support Broadcast Storm Control
Portable Optical Ethernet Switch 5 Port Support Broadcast Storm Control
Portable Optical Ethernet Switch 5 Port Support Broadcast Storm Control
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-SF1T4-20
Place of Origin :
China(Mainland)
MOQ :
1 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5
Price :
Negotiable
UTP :
RJ-45,10/100Mbps
Dimensions :
125 * 27 * 85mm
Full Duplex :
IEEE802.3x
Power Requirement :
AC220V(100-240V),DC5V 1A;
Ambient Temperature :
0 ~ +50C
Storage Temperature :
-20 ~ +70C
Colour :
Black
UTP cable :
Cat. 5
Description

OFS-SF1T4-20

4ports 100M + 1port 100M SM 20KM Fiber Switch

Feature:

4 Port 10/100Mbps with Auto Uplink™ , 1 port 100Mbps Fiber port.

Automatic MAC address learning and aging

10/100Mbps Auto-negotiation , auto-MDI-MDI-X

LED indicators for monitoring power/link/activity

Supports10/100Mbps-Full/Half-duplex

Supports Wall-mount and DIN-Rail installation ,Optional.

Supports Broadcast Storm Control

Excellent heat elimination without cooling fan.

Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.

Harsh environment or higher requirement

-10℃-55℃operating temperature range.

Description:

OFS-SF1T4-20 series is a Layer 2 + Optical Ethernet switch with 1*100Mbps Optical fiber ports and 4*10/100Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.

OFS-SF1T4-20's high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc.

Technical Specifications

Product Name

4-port 10/100Mbps + 1-port 100Mbps Fiber

Product Model

OFS-SF1T4-20

Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab 100Base-T; IEEE802.3z 100Base-X; IEEE802.3x;

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

Fiber Media

Multi-mode: 2KM

Single-mode: 20/40/60/80/100KM

Fiber port :SC/ST/FC Optional

Performance Specification

Bandwidth: 1Gbps Packet Buffer Memory:1M Packet Forwarding Rate:148800pps/port MAC Address Table:1K

Forwarding Mode

Store-and-Forward

LED Indicators

Power: PWR;FX Link/Act;TP FDX(1-4); TP Link/Act(1-4)

Power Supply

Input: AC100 ~ 250V,

Output:DC5V 2A.

Max power

4W

Environment temperature

0 ~ +55℃

Storage temperature

-20 ~ +70℃

Humidity

5% ~ 90%

Dimensions

28 × 93 × 140mm

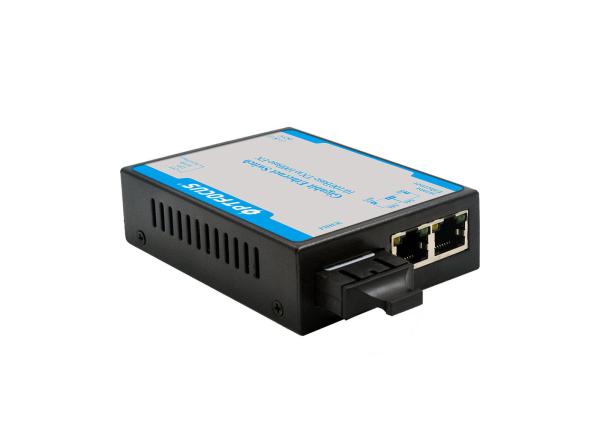

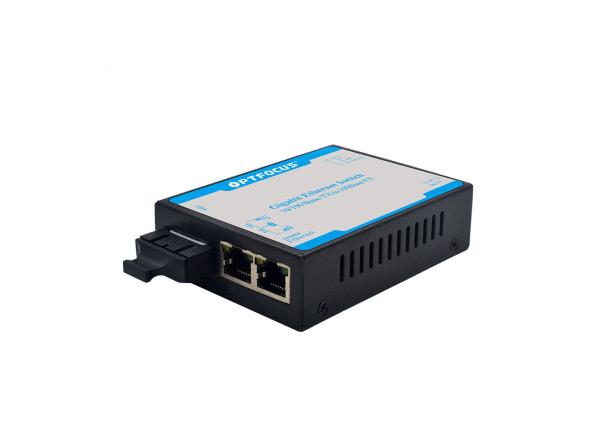

Physical Pic Reference :

Portable Optical Ethernet Switch 5 Port Support Broadcast Storm Control

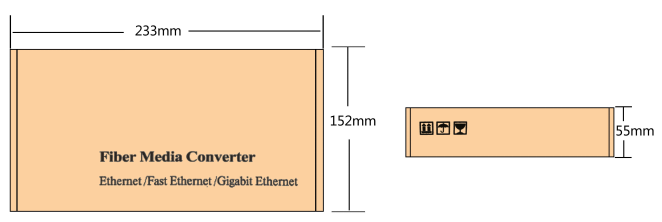

Package Dimension:

Portable Optical Ethernet Switch 5 Port Support Broadcast Storm Control
