Light Weight ONU EPON SC Single Mode Single Fiber Symmetric 1.25 Gbps
Light Weight ONU EPON SC Single Mode Single Fiber Symmetric 1.25 Gbps
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFSE622-VW
Place of Origin :
Guangdong,China(Mainland)
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5
Packaging Details :
1 box/piece
Product Name :
2 port GEPON ONU
Rate :
1000M
PON port :
1*SC PON port
Ethernet port :
1GE+1FE
Compatible :
Huawe,zte,fiberhome,bd-com OLT
Operating condition :
Operating temp: -5 - +45℃ Operating humidity: 10-90% (non-condensed)

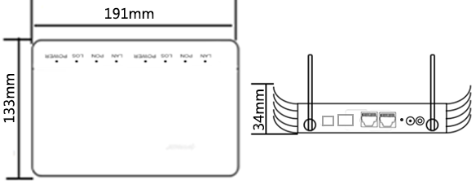

Dimension (L*W*H) :
191mm*133mm*34mm
Net weight :
0.35Kg
Description

OFSE622-VW

1GE+1FE Ethernet ports with Wifi VOIP EPON ONU for FTTH solution

Description:

OFSE622VW ONU terminal devices are designed for fulfilling FTTx and triple play service demand of fixed network operator or cable operators. This box is based on the stable and mature Gigabit EPON technology, which has high ratio of performance to price, and the technology of Layer 2/3,WDM and high quality VoIP as well. EPON ONU is highly reliable and easy to maintain, with guaranteed QoS for different service. And EPON ONU is fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1 and above version) from China Telecom.

Technical Specifications

Technical items

Descriptions

Upstream PON interface

1 EPON interface, SC single-mode/single-fiber, symmetric 1.25Gbps

Wavelength

Tx 1310nm, Rx 1490nm

Data TX output

-1dBm to 4dBm @ 1310nm

Optical RX sensitivity

< -24dBm @ 1490nm

Downstream LAN

interface

1 GE port and 1 FE port automatically, Full Duplex/Half Duplex, RJ45 connectors,1*FXS RJ11 connectors.

Optical interface

SC/PC

WLAN

Compliant with IEEE802.11b/g/n, 2T2R, internal antenna

Indicators

11 indicators.

For status of power supply, PON, LAN and POTS.

DC power supply

+12V, external AC-DC power adapter

Reset button

1, restore the device.

Power button

1, power on/off the device

Power consumption

≤ 10W(HG326E); ≤ 12W(V2800W)

Feature:

l Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology

l l Integrated OAM and TR069 remote configuration and maintenance function

l l Support rich QinQ VLAN function and IGMP snooping multicast feature

l l Integrated line testing compliant with GR-909 on POTS

l l Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset

l l For small and medium-sized operators, VoIP services are customized

l l Support IEEE802.11n 2T2R WiFi function

Ethernet Service Functions:

l l Full speed non-blocking switching

l l Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.

l l Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.

l l Support auto polarity detection of Ethernet ports (AUTO MDIX)

l l Integrated IEEE802.1p QoS with four level priority queues

l l Support IPv4 IGMP snooping and IPv6 MLD snooping

l l Support NAT and Firewall

Physical Pic Reference :

Light Weight ONU EPON SC Single Mode Single Fiber Symmetric 1.25 Gbps

Light Weight ONU EPON SC Single Mode Single Fiber Symmetric 1.25 Gbps

Application

Light Weight ONU EPON SC Single Mode Single Fiber Symmetric 1.25 Gbps

FAQ

1. Is there a minimum order quantity?
No, you can feel free to order any quantity of any product.

2. Do your products come with warranty?
Yes,we provide 1 year warranty for all our products from the date of shipment.


3. How much charge voltage can reach?
Battery charging voltage should be 13.8V only high charging and low cutoff 10V.

4. Is your switch customizable for rack or DIN rail mountable?
Yes, of course, but we have the MOQ. Please contact with out server for details.

5. Does your network management switch support ring redundancy?
With STP (Spanning Tree) function, ring redundancy is supported. The network management type we produce can support this function.

Our Company

Who is SHENZHEN OPTFOCUS TECHNOLOGY CO.,LTD ?

Shenzhen Optfocus Technology Co.,Ltd was established in 2009, OPTFOCUS is a High -tech enterprise, professional R & D, production and sales of Fiber to the Home (FTTH), Fiber to the Building (FTTB) & FTTx, Fiber access network equipment and terminal equipment & cabling system products. It is committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrators.

Our Service

Sales Team

OPTFOCUS TECHNOLOGY Service Online/Offline
A. Payment Terms
1) PAYPAL, Western Union, T/T for samples
2) ESCROW, Ali-Secure, L/C, OA are negotiable
3) Drop-shipping available; Agent/Proxy are welcome!
B. Any inquiried will be replied within 24 hours
C. Professional manufacturer; Welcome to visit our website
D. OEM/ODM service available
E. High quality, reasonable/competitive price, fast lead time
F. After-sale Service
