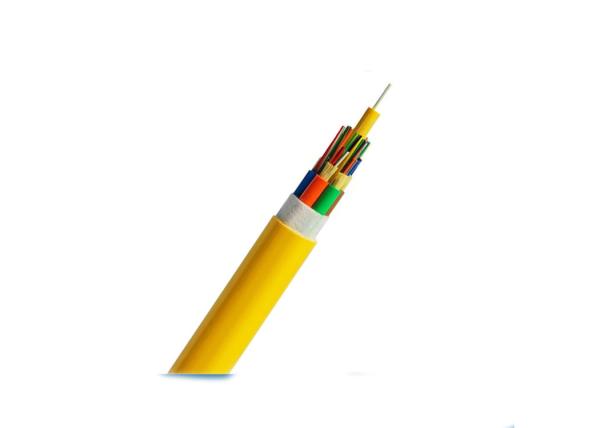

Single Mode Fiber Optic Cable , Indoor Optical Cable Breakout Type
Single Mode Fiber Optic Cable , Indoor Optical Cable Breakout Type
Single Mode Fiber Optic Cable , Indoor Optical Cable Breakout Type
Single Mode Fiber Optic Cable , Indoor Optical Cable Breakout Type
Single Mode Fiber Optic Cable , Indoor Optical Cable Breakout Type
Single Mode Fiber Optic Cable , Indoor Optical Cable Breakout Type
Specifications
Brand Name :
OPTFOCUS
Model Number :
GYFJV
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5
Price :
Negotiable
Product name :
single mode indoor fiber optic distribution breakout Cables
Fiber count :
2/4/6/8/12/16/24/48 cores
Fiber Type :
single mode(G652D,G657A1,G657A2)or multimode
Diameter :
4.8~12.5 mm
Jacket color :
Yellow or customize
Material :
PVC, LSZH, OFNR, OFNP
Operating temperature :
-20℃-60℃
Application :
FTTH FTTB FTTX Network
Description

4 6 12 24 36 48 96 core single mode indoor fiber optic distribution breakout Cables

Product Description

The fiber cable could be pre-connected, is widely applied as access building cable, interconnect between equipment, etc.

The breakout type cable contains several fibers, each with its own jacket and all of them surrounded by one common jacket. Tight-buffered simplex cords are surrounded with aramid yarn and jacket, and then stranded around a central FRP member.

1 – Fiber count-------4/6/8/12/16/24/48.
2 – Characteristic of tight buffered-----OD: 0.87±0.05mm.
3 – Aramid yarn for round strength.
4 – Inner jacket-----OD: 2.0±0.05mm.
5 – Central strength member: FRP.
6 – Water barrier tape.
7- Out jacket: PVC,LSZH,Hytrel,Nylon12 or other contracted material

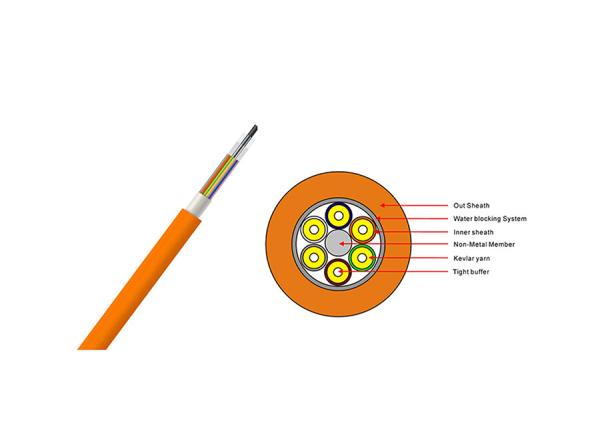

Cable Structure

Features

  • Big capacity, 4~24 fibers are all available.
  • The special outer jacket isolates the fiber conductors from outside moisture.
  • Cable features an easily-strippable 900µm coating for easier handling.
  • Non-metal FRP central strength member, light weight, anti-electromagnetic interference.

Application

  • Ideal for backbone, horizontal, and intrabuilding runs
  • Used in pigtails and patch cords
  • Used in optical connections in optical communication equipment rooms and optical distribution frames
  • Used in optical connections in optical apparatus and equipment

Our Company

Shenzhen Optfocus Technology Co.,Ltd was established in 2009, OPTFOCUS is a High -tech enterprise, professional R & D, production and sales of Fiber to the Home (FTTH), Fiber to the Building (FTTB) & FTTx, Fiber access network equipment and terminal equipment & cabling system products. It is committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrators.

Our Service

OPTFOCUS TECHNOLOGY Service Online/Offline
A.Payment Terms
1) PAYPAL, Western Union, T/T for samples
2) ESCROW, Ali-Secure, L/C, OA are negotiable
3) Drop-shipping available; Agent/Proxy are welcome!
B.Any inquiried will be replied within 24 hours
C.Professional manufacturer; Welcome to visit our website
D. OEM/ODM service available
E. High quality, reasonable/competitive price, fast lead time
F. After-sale Service
