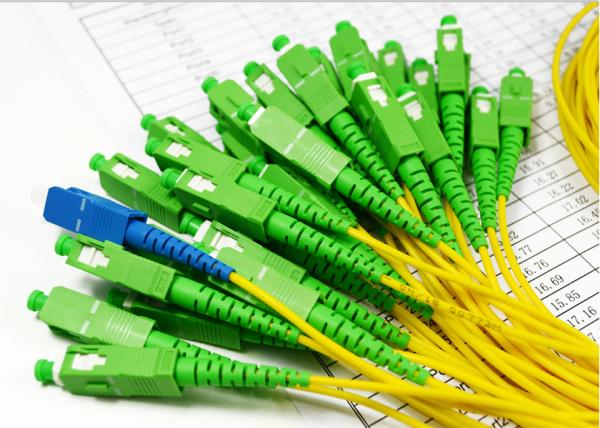

1 * 32 Single Mode Fiber Splitter , Planar Lightwave Circuit Splitter
1 * 32 Single Mode Fiber Splitter , Planar Lightwave Circuit Splitter
1 * 32 Single Mode Fiber Splitter , Planar Lightwave Circuit Splitter
1 * 32 Single Mode Fiber Splitter , Planar Lightwave Circuit Splitter
1 * 32 Single Mode Fiber Splitter , Planar Lightwave Circuit Splitter
1 * 32 Single Mode Fiber Splitter , Planar Lightwave Circuit Splitter
Specifications
Brand Name :
OPTFOCUS
Model Number :
PLC
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5
Price :
Negotiable
Type :
1x32
Mode :
Singlemode
Connector type :
SC/APC
Cable materal :
PVC
Cable OD :
3.0mm
Operation Wavelength :
1280 ~ 1650nm
Insertion Loss :
≤17.4dB
Return Loss :
≥50 dB
Certification 1 :
ROHS
Certification 2 :
ISO9001-2000
Description

1 * 32 Fiber Optic Planar Lightwave Circuit PLC Splitter

1. Specifications

1.1 Optical specifications PLCS-1TPSLF3300-001

Parameters Specifications Units Remark
Channel Number 1×32
Operation Wavelength 1280 ~ 1650 nm
Insertion Loss ≤17.4 dB
Uniformity ≤1.5 dB
Polarization Dependent Loss 0.2 dB
Return Loss ≥50 dB
Directivity ≥55 dB
Fiber Type G657A
Pigtail Input: 0.9 /2.0/3.0mm Cable
Output: Fan-out splitter with 0.9 /2.0/3.0mm Cable
Fiber Length 2.05 m ±0.05
Connector SC,FC,LC,ST,MU…… N/A <0.3dB
Package Dimension

(L) × (W) × (H)

120X80X18mm

141X115X18mm

 nm

1.2 Environmental requirements

Parameters Specifications Units Remark
Operating Temperature -40 ~ +85 °C
Storage Temperature -60 ~ +85 °C

2. Features:

Various coupling ratio

Single mode and multi mode available

Low PDL, low excess loss, low insertion loss

Environmental stable

Standard type, compact size

Variety of connectors available

3. Applications:

Optical communication system

Signal monitoring

CATV Systems & Fiber Sensors

Fiber to the home (FTTH)

Network redundancy

Laser splitting

· Custom colors and lengths

· Thousands of variations made to order

· Low maintenance cabling saves time and resources

· High quality components provide optimal performance

· Low loss provides greater reliability and performance

· Fully tested to ensure zero defects before leaving the factory

· Products exported to Europe and the United States and Southeast Asian

Countries.
