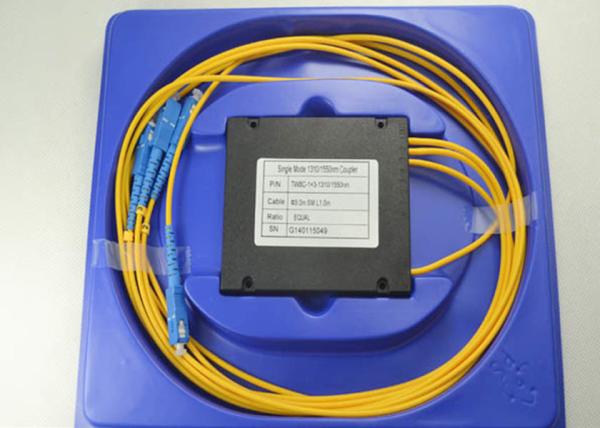

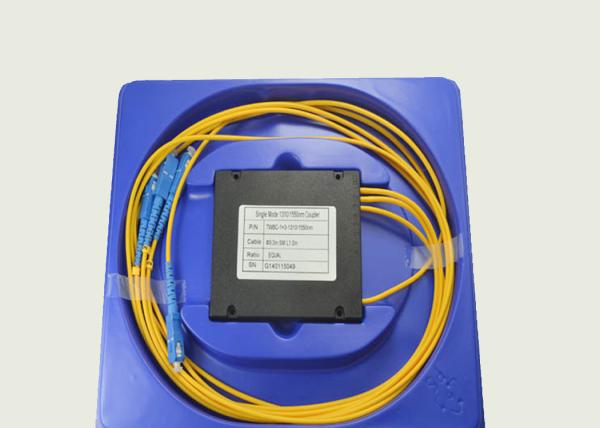

3 Way Fused Biconical Taper Splitter Customized Length Wide Operation Wavelength
3 Way Fused Biconical Taper Splitter Customized Length Wide Operation Wavelength
3 Way Fused Biconical Taper Splitter Customized Length Wide Operation Wavelength
3 Way Fused Biconical Taper Splitter Customized Length Wide Operation Wavelength
Specifications
Brand Name :
OPTFOCUS
Model Number :
1*3 FBT Splitter
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 pcs
Payment Terms :
L/C, D/P, D/A, T/T, Western Union, MoneyGram
Delivery Time :
5
Price :
Negotiable
Connector :
SC/APC
Output Connector Type :
LC ,ST,SC,FC
Length :
1m ,1.5m, 2m or customized length
Ferrule Polish :
APC,UPC,PC
Packing type :
box type
Description

Product Description

Fiber Optic FBT type 3 way SC/UPC passive optical splitter

Application:

1. FTTX networks

2. PON networks

3. CATV links

4. Data Communication

Types:

1. Basic type PLC splitter

2. SFF type PLC splitter

3. 900um Fan-out Type PLC Splitter

4. Cassette type PLC splitter Module

5. Rack type PLC splitter Module

6. Tray assembly PLC splitter Module

7. Flat Quick-Connect Termination Type PLC Splitter Module

Feature:

1. Low Insertion Loss

2. Low Polarization Dependent Loss

3. Wide Operation Wavelength

4. Wide Operation Temperature

5. High Stability and Reliability

6. Telcordia GR-1209 and GR-1221 Compliance

7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)

Specification:

Parameter Unit 1×2 1×4 1×6 1×8 1×12 1×16 1×32 1×64
Premium Grade
Insertion Loss at 23°C Typ. dB 3.9 6.8 9.3 10.0 12.1 13.2 16.5 20.0
Max dB 4.0 7.0 9.6 10.4 12.6 13.5 16.8 20.5
Channel Uniformity Max dB 0.6 0.8 1.0 1.0 1.6 1.6 1.6 2.0
PDL Typ. dB 0.1 0.1 0.1 0.1 0.2 0.2 0.2 0.2
Max dB 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.5
Standard Grade
Insertion Loss at 23°C Typ. dB 4.0 7.0 9.5 10.4 12.4 13.6 17.0 20.5
Max dB 4.2 7.3 10.0 10.6 12.8 13.8 17.1 20.8
Channel Uniformity Max dB 0.6 0.8 1.0 1.0 1.0 1.4 1.6 2.0
PDL Typ. dB 0.1 0.1 0.1 0.1 0.2 0.2 0.2 0.3
Max dB 0.2 0.3 0.3 0.2 0.3 0.3 0.3 0.5
Return Loss Min dB 55 (Premium Grade)/50 (Standard Grade)
Directivity Min dB 55
Operation Wavelength nm 1260~1650
Operation Temperature °C -4-~+85
Storage Temperature °C -4-~+85
Fiber Type - G.657A or Customized
