Specifications
Brand Name :
OPTFOCUS
Model Number :
1*16 PLC Splitter
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5
Price :
Negotiable
Connector :
SC/UPC
Output Connector Type :
LC ,ST,SC,FC
Length :
1m ,1.5m, 2m or customized length
Ferrule Polish :
APC,UPC,PC
Description

Product Description

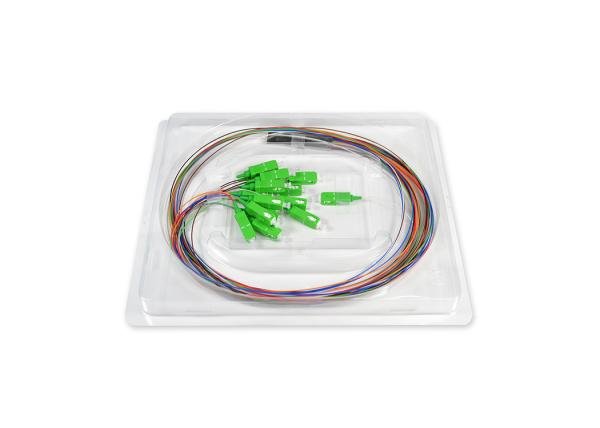

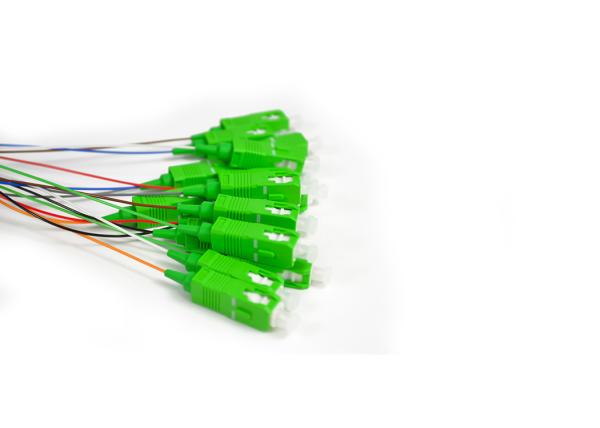

Supply Best Price 1*16 Optical PLC Splitter SC/UPC Optical Fiber Splitter

Description of PLC Splitter

PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. DYSFO’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.

Application:

1. FTTX networks

2. PON networks

3. CATV links

4. Data Communication

Types:

1. Basic type PLC splitter

2. SFF type PLC splitter

3. 900um Fan-out Type PLC Splitter

4. Cassette type PLC splitter Module

5. Rack type PLC splitter Module

6. Tray assembly PLC splitter Module

7. Flat Quick-Connect Termination Type PLC Splitter Module

Feature:

1. Low Insertion Loss

2. Low Polarization Dependent Loss

3. Wide Operation Wavelength

4. Wide Operation Temperature

5. High Stability and Reliability

6. Telcordia GR-1209 and GR-1221 Compliance

7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)

Specification:

Parameter Unit 1×2 1×4 1×6 1×8 1×12 1×16 1×32 1×64
Premium Grade
Insertion Loss at 23°C Typ. dB 3.9 6.8 9.3 10.0 12.1 13.2 16.5 20.0
Max dB 4.0 7.0 9.6 10.4 12.6 13.5 16.8 20.5
Channel Uniformity Max dB 0.6 0.8 1.0 1.0 1.6 1.6 1.6 2.0
PDL Typ. dB 0.1 0.1 0.1 0.1 0.2 0.2 0.2 0.2
Max dB 0.2 0.3 0.3 0.3 0.3 0.3 0.3 0.5
Standard Grade
Insertion Loss at 23°C Typ. dB 4.0 7.0 9.5 10.4 12.4 13.6 17.0 20.5
Max dB 4.2 7.3 10.0 10.6 12.8 13.8 17.1 20.8
Channel Uniformity Max dB 0.6 0.8 1.0 1.0 1.0 1.4 1.6 2.0
PDL Typ. dB 0.1 0.1 0.1 0.1 0.2 0.2 0.2 0.3
Max dB 0.2 0.3 0.3 0.2 0.3 0.3 0.3 0.5
Return Loss Min dB 55 (Premium Grade)/50 (Standard Grade)
Directivity Min dB 55
Operation Wavelength nm 1260~1650
Operation Temperature °C -4-~+85
Storage Temperature °C -4-~+85
Fiber Type - G.657A or Customized

Our Service

OPTFOCUS TECHNOLOGY Service Online/Offline
A.Payment Terms
1) PAYPAL, Western Union, T/T for samples
2) ESCROW, Ali-Secure, L/C, OA are negotiable
3) Drop-shipping available; Agent/Proxy are welcome!
B. Any inquiried will be replied within 24 hours
C. Professional manufacturer; Welcome to visit our website
D. OEM/ODM service available
E. High quality, reasonable/competitive price, fast lead time
F. After-sale Service
