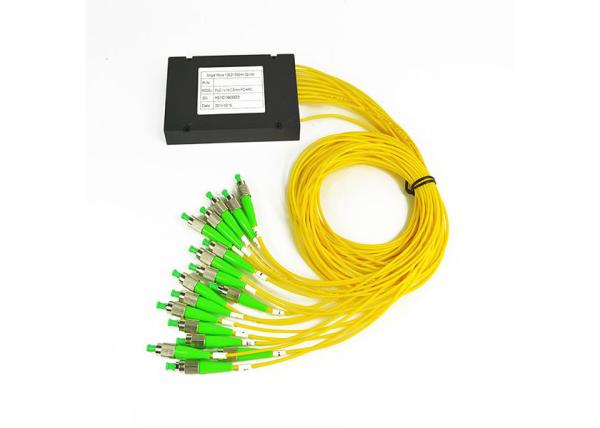

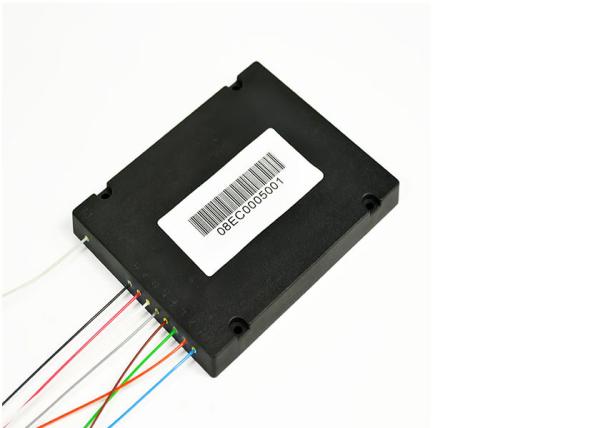

Fiber Optic 1*32 Planar Lightwave Circuit Splitter Low Polarization Dependent Loss
Fiber Optic 1*32 Planar Lightwave Circuit Splitter Low Polarization Dependent Loss
Fiber Optic 1*32 Planar Lightwave Circuit Splitter Low Polarization Dependent Loss
Fiber Optic 1*32 Planar Lightwave Circuit Splitter Low Polarization Dependent Loss
Fiber Optic 1*32 Planar Lightwave Circuit Splitter Low Polarization Dependent Loss
Fiber Optic 1*32 Planar Lightwave Circuit Splitter Low Polarization Dependent Loss
Fiber Optic 1*32 Planar Lightwave Circuit Splitter Low Polarization Dependent Loss
Fiber Optic 1*32 Planar Lightwave Circuit Splitter Low Polarization Dependent Loss
Fiber Optic 1*32 Planar Lightwave Circuit Splitter Low Polarization Dependent Loss
Fiber Optic 1*32 Planar Lightwave Circuit Splitter Low Polarization Dependent Loss
Fiber Optic 1*32 Planar Lightwave Circuit Splitter Low Polarization Dependent Loss
Fiber Optic 1*32 Planar Lightwave Circuit Splitter Low Polarization Dependent Loss
Specifications
Brand Name :
OPTFOUCS
Model Number :
PLC
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5
Price :
Negotiable
Certification 1 :
Rosh
Certification 2 :
ISO9001-2000
Operating Wavelength(nm) :
1260~1650
Color :
blue, orange,green,grown,grey,white,red,black
Fiber Type :
G657A1 or customized
Connector :
SC/APC,SC/UPC,or customized
Cable Length of Blockless Splitter :
1m,1.5m,can be customized
Fiber diameter :
0.9mm,2.0mm,3.0mm
Cassette material :
aluminium
Return Loss(dB) :
≥60
Description

Packaging & Delivery
Packaging Details 1piece 1 box or as your demand
Port SHENZHEN/HONGKONG
Lead Time : 1-3day

type price
1*2 2.5usd - 4.5usd
1*4 2.6usd - 5.5 usd
1*8 3.5usd - 7.5usd
1*16 5.5usd - 13.5 usd
1*32 10.5 usd - 25.5usd



1.Specifications

1.1 Optical specifications PLCS-1TPSLF3300-001

Parameters Specifications Units Remark
Channel Number 1×32
Operation Wavelength 1280 ~ 1650 nm
Insertion Loss ≤17.4 dB
Uniformity ≤1.5 dB
Polarization Dependent Loss 0.2 dB
Return Loss ≥50 dB
Directivity ≥55 dB
Fiber Type G657A
Pigtail Input: 0.9 /2.0/3.0mm Cable
Output: Fan-out splitter with 0.9 /2.0/3.0mm Cable
Fiber Length 2.05 m ±0.05
Connector SC,FC,LC,ST,MU…… N/A <0.3dB
Fiber Mark Input fiber color: white
Output fiber color: marked with Blue,Blue*,Orange,Orange*,Green,Green*,Brown, Brown*,Grey,Grey*,White,White*,Red,Red*, Black,Black*,Blue**,Blue***,Orange**,Orange***, Green**,Green***,Brown**,Brown***,Grey**,Grey***,White**,White***,Red**,Red***, Black**,Black***
Package Dimension

(L) × (W) × (H)
120X80X18mm
141X115X18mm

 nm


1.2 Environmental requirements

Parameters Specifications Units Remark
Operating Temperature -40 ~ +85 °C
Storage Temperature -60 ~ +85 °C
