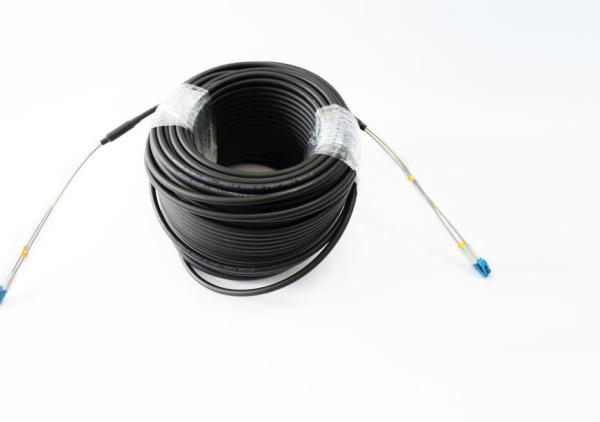

Customized FTTA Fiber To The Antenna , CPRI Outdoor Fiber Patch Cord
Customized FTTA Fiber To The Antenna , CPRI Outdoor Fiber Patch Cord
Customized FTTA Fiber To The Antenna , CPRI Outdoor Fiber Patch Cord
Customized FTTA Fiber To The Antenna , CPRI Outdoor Fiber Patch Cord
Customized FTTA Fiber To The Antenna , CPRI Outdoor Fiber Patch Cord
Customized FTTA Fiber To The Antenna , CPRI Outdoor Fiber Patch Cord
Customized FTTA Fiber To The Antenna , CPRI Outdoor Fiber Patch Cord
Customized FTTA Fiber To The Antenna , CPRI Outdoor Fiber Patch Cord
Customized FTTA Fiber To The Antenna , CPRI Outdoor Fiber Patch Cord
Customized FTTA Fiber To The Antenna , CPRI Outdoor Fiber Patch Cord
Specifications
Brand Name :
OPTFOCUS
Model Number :
FTTA Patch Cord
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5
Price :
Negotiable
Name :
FTTA patchcord
Fiber Type :
G652D, G657A1,G657A2,G655
Color :
Black or customized
Material :
LSZH, PVC,pe
Connector :
LC, ST,FC,SC,ODVA,ODC,FULLAXS,ODLC
Description

China supplier for CPRI outdoor patch cord with competitive price

Application:

Fiber-to-the-Antenna (FTTA)

Latest and next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE,etc.) deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast.

Automation and industrial cabling

provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of
shock, strongest vibration, or accidental misuse.

Surveillance systems

Security camera manufacturers choose ODC connectors for its compact size and robust design. ODC assemblies are easy to install even in areas difficult to access and provide highest installation safety.

Naval and ship building

The high corrosion resistance convinced both naval and civil ship builders to use ODC assemblies for on-board communication systems. The nickel plated connectors withstand humid and salty environments and guarantee life times of 20 years and beyond.

Broadcast

offers a range of mobile cabling systems and ODC assemblies for temporary cable installations
required for the broadcasting of sport events, car racing, etc.and for temporary connections in case of natural hazards.

Feature

1. FTTA,WiMax base solution,CATV outdoor Application;

2. Optional Diameter:4.8mm,7.0mm or Customized;

3. Optional Jacket:LSZH,PE,PU,Armouted or Non Amoured;

4. IP67 Waterproof protection;

Assembly Performance:

Item Data

Insertion Loss

Return LOss

<0.3dB

SM/UPC>50dB,SM/APC>60dB,MM>35dB

Mechanical life

Working temperature

Storage temperature

Operating temperature

500cycles

-40℃~+70℃~

-40℃~+70℃~

-10℃~+50℃~
Protection Level IP67
Tensile Data Tensile between junction and fiber cable >100N
Authentication Meet with RoHS

Cable Specification

Item Data
fiber OS2,OM1,OM2,OM3,OM4
Tension member Aramid Kevlar,Armoured Tube
Max. attenuation

SM:<0.34dB/km at 1310nm,<0,20dB/km at 1550nm

MM:<0.60dB/km at 1300nm,<2.3dB/km at 850nm
Tensile resistance(short term) 500N(no breakage)
Crush resistance(short term/long term) 1000N/100mm
inflaming retarding IEC 60332-3
Temperature -40~+70℃

Uvioresistant

AuthenticationData

PASS

Meet with RoHS & UL
