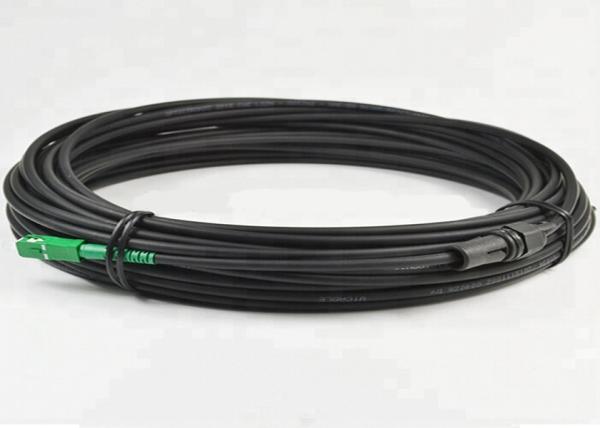

Waterproof 4.8mm simplex SC/APC outdoor fiber optic cable ord Jumper

Details:

PDLC harsh environment cable assemblies are installation-friendly for fixed or mobile applications and transmit reliably data over long distances under severe environmental conditions.

Application:

Fiber-to-the-Antenna (FTTA)

Latest and next-generation mobile communication systems(GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE,etc.) deploy fiber-optic feeders to link the base station with the remote unit at the antenna mast.

Automation and industrial cabling

This provides highest reliability and operating safety. The ruggedized design provides highest mechanical and thermal robustness which keeps the data lines alive even in case of shock, strongest vibration, or accidental misuse.

Surveillance systems

Security camera manufacturers choose this connectors for its compact size and robust design. This assemblies are easy to install even in areas difficult to access and provide highest installation safety.

Naval and ship building

The high corrosion resistance convinced both naval and civil ship builders to use the assemblies for on-board communication systems. The nickel plated connectors withstand humid and salty environments and guarantee life times of 20 years and beyond.

Broadcast

offers a range of mobile cabling systems and this assemblies for temporary cable installations
required for the broadcasting of sport events, car racing, etc.and for temporary connections in case of natural hazards.

Key Features

1• Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism

2• IP68 protection, salt-mist proof, and EMI protection

3• High shock, vibration, and mechanical resistance

4• Broad temperature range and wide range of indoor and outdoor cables

5• Easy, reliable and cost-effective installation

Optical performance

1.Insertion loss / IEC 61300-3-34

2.singlemode typ. ≤ 0.2 dB 97% ≤ 0.45 dB
3.multimode typ. ≤ 0.2 dB 97% ≤ 0.50 d

Return loss / IEC 61300-3-6 singlemode ≥ 50 dB
