OFS-GWS01/02-20 Series

LFP&Jumbo Frame Support 10/100/1000M Ethernet Fiber Media Converter

Description:

OFS-GWS01/02-20 Series Fiber Media Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100/1000M UTP interface (TX) and 1000M Fiber interface (FX). The traditional 10/100/1000M Fast Ethernet can be extended to the distance of 120km through optical fiber link. The performance and quality of the products are excellent because of adopting latest IC. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe the network operations. The Series products with reasonable price are especially designed for network users.OPTFOCUS Series Converters could be used alone.

Technical Specifications

Features:

1 Port 10/100/1000Mbps with Auto Uplink™ , 1 port 1000Mbps SFP

10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X

Comply with IEEE 802.3, IEEE 802.3u 10/100/1000Base-TX, 1000Base-FX Standard

Auto negotiation function allows UTP port to auto select 100M or 1000M and Full Duplex or Half Duplex

Supporting 1552 bytes packet

Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber

Data Transfer Rate:
- TP: 10/100/1000Mbps
- FX: 1000Mbps

Duplex mode support:
- Full or half-duplex mode by Auto-Negotiation (TP)

LED indicators: Power, FX Link/Act, TX 1000, 100,TX FDX, TX Link/Act

Supports link fault pass through function.

Design of internal or external power supply for selection by end-users

Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.

Others Specifications

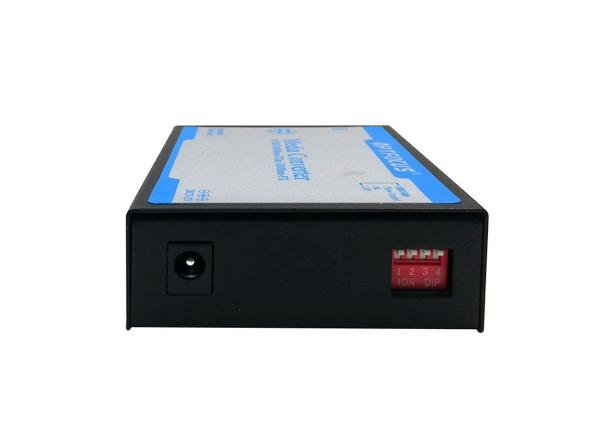

DIP Switch:

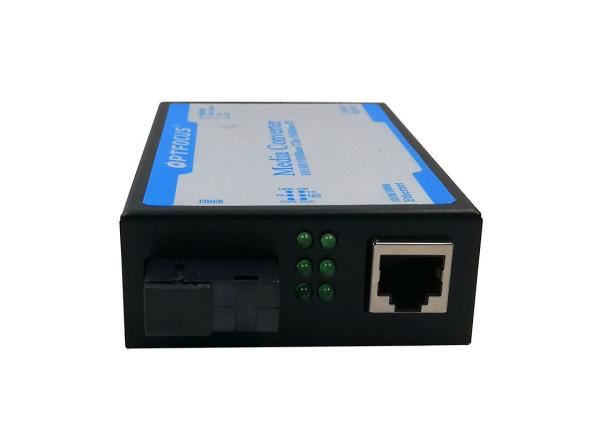

Physical Pic Reference :

Chassis Dimension

Package Dimension:

Power Supply Standard:

Ordering Information:

FAQ

1. Is there a minimum order quantity?
No, you can feel free to order any quantity of any product.

2. Do your products come with warranty?
Yes,we provide 1 year warranty for all our products from the date of shipment.

3. How much charge voltage can reach?
Battery charging voltage should be 13.8V only high charging and low cutoff 10V.

4. Is your switch customizable for rack or DIN rail mountable?
Yes, of course, but we have the MOQ. Please contact with out server for details.

5. Does your network management switch support ring redundancy?
With STP (Spanning Tree) function, ring redundancy is supported. The network management type we produce can support this function.
