2 core Self-supported g657a ftth drop cable FTTH outdoor Drop fiber optic cable
2 core Self-supported g657a ftth drop cable FTTH outdoor Drop fiber optic cable
2 core Self-supported g657a ftth drop cable FTTH outdoor Drop fiber optic cable
2 core Self-supported g657a ftth drop cable FTTH outdoor Drop fiber optic cable
2 core Self-supported g657a ftth drop cable FTTH outdoor Drop fiber optic cable
2 core Self-supported g657a ftth drop cable FTTH outdoor Drop fiber optic cable
2 core Self-supported g657a ftth drop cable FTTH outdoor Drop fiber optic cable
2 core Self-supported g657a ftth drop cable FTTH outdoor Drop fiber optic cable
2 core Self-supported g657a ftth drop cable FTTH outdoor Drop fiber optic cable
2 core Self-supported g657a ftth drop cable FTTH outdoor Drop fiber optic cable
Specifications
Brand Name :
OPTFOCUS
Model Number :
Drop Cable
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5
Price :
Negotiable
Number of Conductors: :
2
Fiber count :
4
Cable diameter :
4.1*2.0mm
Cable weight :
10kg/km
ROHS :
YES
Fiber Brand :
Corning, OFS, YOFC

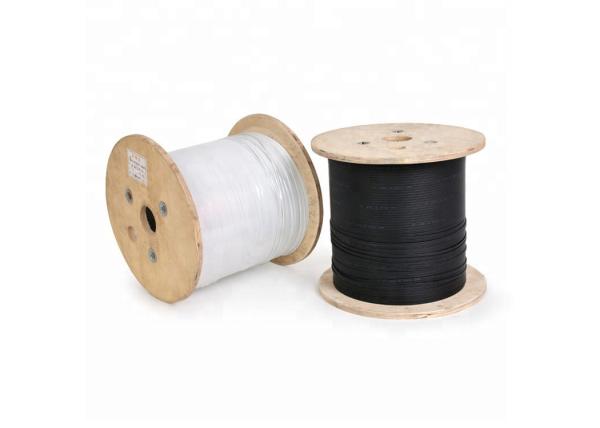

Cable color :
White, black
Description

2 core Self-supported g657a ftth drop cable FTTH outdoor Drop fiber optic cable

Product Description

1. Feature

-- The optical fiber meets the requirment of Etisalat specifications

-- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.

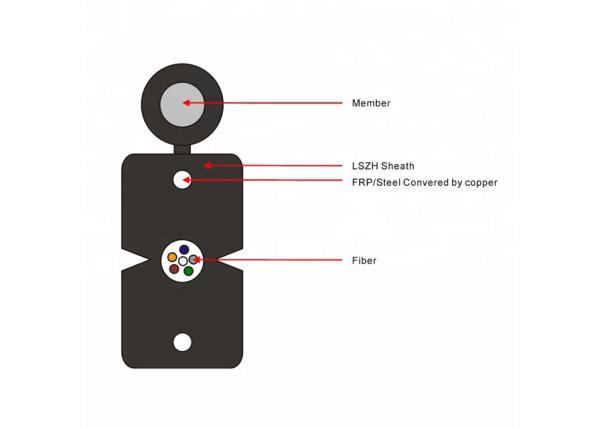

-- Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.

-- Simple structure, light weight and high practicability.

-- Novel flute design, easily strip and splice, simplify the installation and maintenance.

-- Low smoke, zero halogen and flame retardant sheath.

2· Applications:

-- FTTH system

-- Indoor riser level and plenum level cable distribution

-- Interconnect between instruments, communication equipments

FIBER CHARACTERISTICS

ITEM CONSTRUCTION (G652)
MODE FIELD DIAMETER @1310NM 8.6±0.4μm
CLADDING DIAMETER 125±1μm
CORE CONCENTRICITY ERROR <=0.6μm
CLADDING NON-CIRCULARITY <=1.0%
PRIMARY COATING DIAMETER 250±15μm
COATING-CLADDING CONCENTRICITY ERROR <=12.5μm
FIBER CURL RADIUS >=4m

TRANSMISSION CHARACTERISTICS

ITEM performance
ATTENUATION 1310nm
1550nm		 <=0.40db/km
<=0.30db/km
MACRO BENDING LOSS 30mm
10 tums at 1550nm		 <=0.50db
CUT-OFF WAVELENGTH <=1260nm
CHROMATIC DISPERSION 1310nm
1550nm		 <=3.5ps/nm.km
<=18ps/nm.km
ZERO DISPERSION WAVELENGTH 1300-1324nm

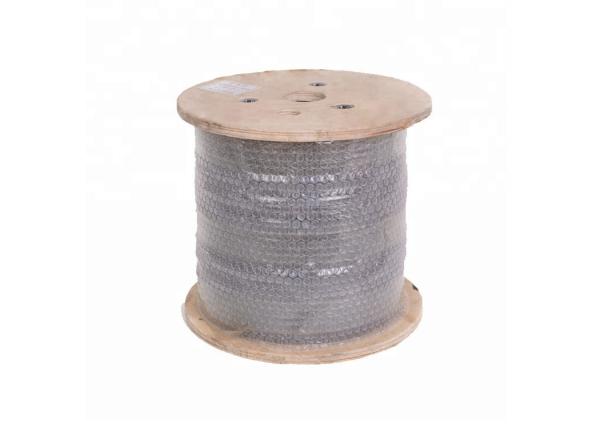

Packing & delivery

1. Delivery in standard hengths of 1000 meters

2. Custornized lengths are slso dvailable

3. Protocied against trarsh envionmental condiuons.
