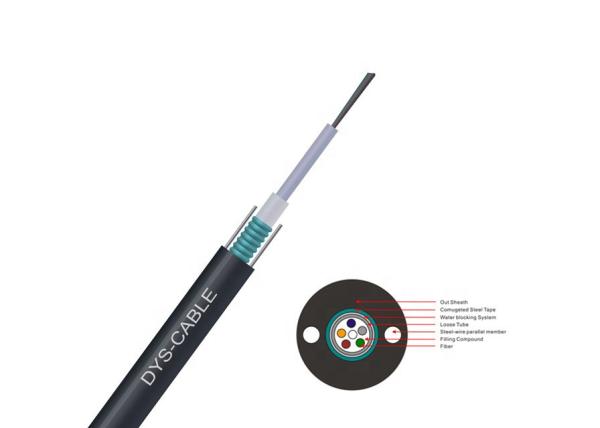

4,6,8,12 Core Center Loose Tube Duct GYXTW Outdoor Fiber Optic Cable
4,6,8,12 Core Center Loose Tube Duct GYXTW Outdoor Fiber Optic Cable
4,6,8,12 Core Center Loose Tube Duct GYXTW Outdoor Fiber Optic Cable
4,6,8,12 Core Center Loose Tube Duct GYXTW Outdoor Fiber Optic Cable
4,6,8,12 Core Center Loose Tube Duct GYXTW Outdoor Fiber Optic Cable
4,6,8,12 Core Center Loose Tube Duct GYXTW Outdoor Fiber Optic Cable
Specifications
Brand Name :
OPTFOCUS
Model Number :
GYXTW Cable
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Delivery Time :
5
Application :
Outdoor
Jacket color :
Black
Jacket Material :
PE
Fiber Count :
2 to 12 cores
Fiber Brand :
Corning, OFS, YOFC
Length for each drum: :
2KM or negotiated
Description
Packaging & Delivery

Packaging Details

2KM/Wood Spool

Port

Shenzhen

Lead Time :

Quantity(Meters) 1 - 10000 >10000
Est. Time(day) 2 To be negotiated

Product Description

GYXTW content with different requirement indoor, Include: buildings,lift well,FTTD. Fiber Optic Cable can
supply bandwidth, transmission speech,data,TV and image. Characteristic: small diameter,light
weight,flexibility. So Fiber Optic Cable Is easy to installation,maintenance and manage.

Application

1.Excellent stripping performance of tight buffer fiber or Easy Strip Fiber
2.Cable diameter and bending radius small, Fiber Optic Cable can installation freely in narrow room.

Technical Parameter

Fiber Cores OD(mm) Tube Normal Weight(kg/km) Max Tensile Strength (N) Max. Crush Resistance(N/100mm) Min Bending Radius(mm)
Short Term Long Term Short Term Long Term Dynamic Static
2~24 8.0±0.3 1 110 1500 600 1000 300 20D 10D

The true weight of optical cable may had some tolerance with the above stated value.

Mechanical Performance

Max Tension Performance IEC 60794-1-2-E
Max. Operation Tesion IEC 60794-1-2-E1
Crush Test IEC 60794-1-2-E3
Impact Test IEC 60794-1-2-E4
Repeated Bending IEC 60794-1-2-E6
Torsion Test IEC 60794-1-2-E7
Cable Bend IEC 60794-1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC 60793-1-20

Environmental Performance:

Temperature Cycling IEC 60794-1-2-F1
Water Penetration IEC 60794-1-2-F5B
Filing Compound IEC 60794-1-E14

4,6,8,12 Core Center Loose Tube Duct GYXTW Outdoor Fiber Optic Cable

Our Company

Shenzhen Optfocus Technology Co.,Ltd was established in 2009, OPTFOCUS is a High -tech enterprise, professional R & D, production and sales of Fiber to the Home (FTTH), Fiber to the Building (FTTB) & FTTx, Fiber access network equipment and terminal equipment & cabling system products. It is committed to provide Customized OEM & ODM services to Global communication distributors, Telecom Operators and System Integrators.
