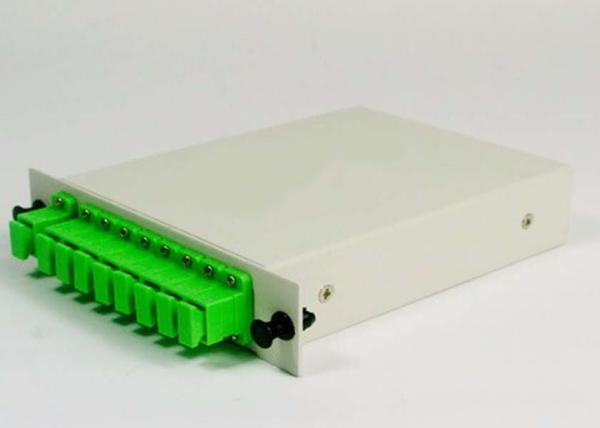

Compact 1x8 Fiber Optic PLC Splitter Customized Color Low Insertion Loss
Compact 1x8 Fiber Optic PLC Splitter Customized Color Low Insertion Loss
Compact 1x8 Fiber Optic PLC Splitter Customized Color Low Insertion Loss
Compact 1x8 Fiber Optic PLC Splitter Customized Color Low Insertion Loss
Specifications
Brand Name :
OPTFOCUS
Model Number :
Splitter
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1 pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
5
Price :
Negotiable
Name :
PLC
Certification :
ISO9001:2008
Fiber Type :
G652D
Color :
white or customized
Material :
LSZH, PVC
Connector :
SC, LC,FC,ST,MTRJ,MPO,E2000
Description

1310/1550nm Passive SC/APC 1x8 Fiber Optic Splitter

Product Description
Key Features
Compact package –Convenient for Small Application & High Density Areas
Telcordia GR-1209 & GR-1221-CORE Compliant
Jacketing Material Rated to -40 to +85 °C Operating Temperature
Bend Insensitive G657A fiber
Low Insertion Loss and PDL
High Polarization Extinction Ratio & Excellent Uniformity
Offer Unique Designs and Configuartions & Support Industry Standard Applications


Applications
FTTx Deployments(GPON/BPON/EPON)
CCTV/CATV Links
Access/Metro Networks
Long Haul Telecommunications

1×N PLC Splitter Specifications

Ports 1×2 1×4 1×8 1×16 1×32 1×64
Operating Wavelength (nm) 1260~1650
Insertion Loss (dB) Max(P/S) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.8 20.5/21.0
Loss Uniformity (dB) Max 0.6 0.6 0.8 1.2 1.5 2.5
PDL (dB) Max 0.15 0.15 0.25 0.3 0.3 0.3
Return Loss (dB) Min UPC:50 APC:55
Directivity (dB) Min 55
Standard Input Fiber Bend Insensitive SM Single Fiber(ITU G.657A)
Standard Output Fiber Bend Insensitive SM Ribbon Fiber(ITU G.657A)
Standard Output Color Blue,Orange,Green,Brown,Grey,White,Red,Black(TIA/EIA 598-B)
Max.Optical Power(mw) 300
Humidity Range(rh) 5%~85%
Operating Temperature(°C) -40~+85
Storage Temperature(°C) -40~+85
Connector Options FC/SC/LC/ST/MU/E2000
Packaging Options Bare Device*Mini Tube*ABS Module*LGX Box*19''/23'' Rack-mount
* Telcordia GR-1221-CORE&G-1209-CORE Compliant.
* Premium spec available upon request. (P/S:Premium Grade/Standard Grade)
* Typical value at +23°C without connectors losses.
