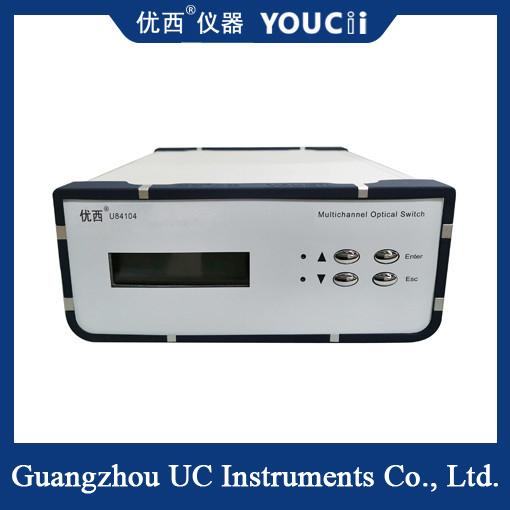

1x4 Desktop Optical Switch Small Insertion Loss Fast Switching Speed
1x4 Desktop Optical Switch Small Insertion Loss Fast Switching Speed
Specifications
Model Number :
U84104
Brand Name :
YOUCii
Certification :
CU,IOS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Test wavelength :
1310nm / 1550 nm
repeatability :
±0.05 dB
crosstalk :
≥55dB
Switching time :
≤ 10ms（Adjacent sequential switching）
Working power supply :
Dual AC: 85 ~ 264 V (50/60Hz)
Chassis type :
Desktop box（245×105×325 mm）
Description

1x4 Desktop Optical Switch Small Insertion Loss Fast Switching Speed

FSW1×4-SM-C single-mode optical switch is a device with multi-channel optical path switching function developed by Guilin Julian Technology Co., LTD. It mainly has the following uses:

1. Multi-channel optical monitoring in optical transmission system;

2.LAN multi-light source/detector automatic switching, light sensing multi-point dynamic monitoring system;

3.Optical test system for optical fiber, optical devices, networks and field engineering cable testing;

4.optical device installation and adjustment.

Technical indicators:

▲Test wavelength: 1310nm, 1550nm

▲ Optical fiber type: single mode

▲ Optical interface: FC/PC

▲ Insertion loss: ≤1dB

▲ return loss: ≥45dB

▲ crosstalk: ≤-70dB

▲Switching time: ≤12ms (sequential switching of adjacent channels)

▲ Reproducibility: ≤±0.02dB

▲Life: ≥3×107 times

▲ Operating temperature: -20~ +60℃

▲Storage temperature: -40 ~ +70℃

▲ Power supply: 220V AC

▲Control interface: RS-232

▲ Chassis dimensions: 290mm x 120mm x 260mm

Model U84104
Operating wavelength 1260 ～ 1650nm

Test wavelength

 1310nm / 1550 nm

Insertion loss

 ≤1.2 dB

repeatability

 ≤±0.05 dB

Return loss

 ≥50dB

crosstalk

 ≥55dB
Wavelength dependent loss ≤0.25

Polarization dependent loss

 ≤0.05

Switching time

≤ 10ms(Adjacent sequential switching)

Fiber type

 SM(9/125um,Polarization-maintaining fiber)

Connector form

 FC/PC

Monitoring port

 RJ45,RS-232

Working power supply

Dual AC: 85 ~ 264 V (50/60Hz)

Operating temperature

 -5 ～ + 60℃

Storage temperature

 -40 ～ + 80°C

Chassis type

 Desktop box(245×105×325 mm)

Optical switch is a device that controls the switching state of a circuit through optical signals. It is usually composed of a photosensitive element, a signal amplifier, a trigger circuit and a switching circuit. When illuminated by light, the photosensitive element generates a photogenerated charge, which is amplified and converted into a digital signal by a trigger circuit, which ultimately controls the closing or opening of the switching circuit.

1x4 Desktop Optical Switch Small Insertion Loss Fast Switching Speed
