High Speed Power Meter Optical Power Meter Desktop Power Meter
High Speed Power Meter Optical Power Meter Desktop Power Meter
Specifications
Brand Name :
YOUCii
Model Number :
U8728A
Place of Origin :
CHINA
MOQ :
1pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Certification :
CU,IOS
Price :
negotiate a price
Supply Ability :
20pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Wavelength Range :
850/980/1310/1490/1550/1610 nm
Application Fiber Type :
Standard SM and MM up to 62.5 um core size
Relative Uncertainty (accuracy) :
＜ 0.02 dB Typical
Communication Interface :
RS232, USB，Control by PC
Storage Temperature :
-30～+80℃
Recalibration Period :
2 years
Description

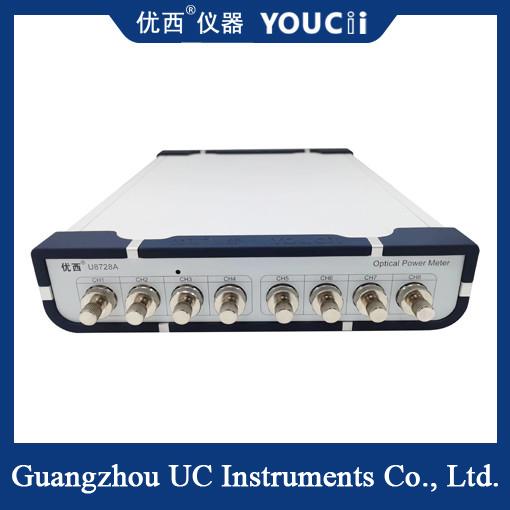

High Speed Power Meter Optical Power Meter Desktop Power Meter

Multi-channel optical power meter, small size, easy to carry. Optical power meters can be used for high-precision WD-division multiplexing DWDM components, optical waveguide grating array AWG components, planar optical waveguide PLC components, WSS, OPM, DPSK, optical amplifiers EDFA and other general optical fiber optical measurement applications. Especially suitable for assembly into multi-channel optical power meter sampling system.

Application

Active optical module/Optical Device Test:

In the multi-channel error measurement of optical transceiver module, parallel data measurement is realized. In the sensitivity measurement of optical receiving module, it provides parallel, fast and accurate optical power input; 200ms optical power control stability time, greatly improve the test efficiency.

Optical communication network integration test:

Test network transmission performance and network management functions in optical communication network integration.

 The optical power output can be quickly and accurately set. The optical power control stability time is less than 200 ms.

 Built-in high-precision optical power meter ensures the stability and accuracy of power monitoring.

 small size, compact structure, simple operation, intuitive graphical user interface, multi-channel data preview, test status at a glance.

Model # U8728A
Sensor Element InGaAs
Wavelength Range 850 ~ 1700 nm
Calibration Wavelength 850/980/1310/1490/1550/1610 nm

Power Range + 5 ~ -65dBm
Sampling period 100us (10KHz)
Application Fiber Type Standard SM and MM up to 62.5 um core size
Uncertainty (accuracy) ± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) ＜ 0.02 dB Typical
Linearity (power) ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -60dBm)
Return Loss ＞40 dB
Communication Interface RS232, USB,Control by PC
Operation Temperature 0 ～ +40℃
Storage Temperature -30 ～ +80℃
Recalibration Period 2 years
Dimensions 235 mm W, 55mm H, 320 mm D
Weight 3.0 kg

High Speed Power Meter Optical Power Meter Desktop Power Meter

High Speed Power Meter Optical Power Meter Desktop Power Meter
