Dual Channel Optical Power Meter Ultra-Thin PD External High Precision
Dual Channel Optical Power Meter Ultra-Thin PD External High Precision
Specifications
Brand Name :
YOUCii
Model Number :
U8202B + U82024
Place of Origin :
China
Certification :
CU,IOS
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Sensor Element :
InGaAs
Data Interface :
USB/RS232
Power Range :
+10 ~ - 45 dBm
Application Fiber Type :
Standard SM and MM up to 62.5 um core size
Return Loss :
＞ 40 dB
Probe front dimension :
5.0 mm W x 2.5 mm H x 20.0 mm D
Description

Dual Channel Optical Power Meter External PD Cost-Effective

Product Description:

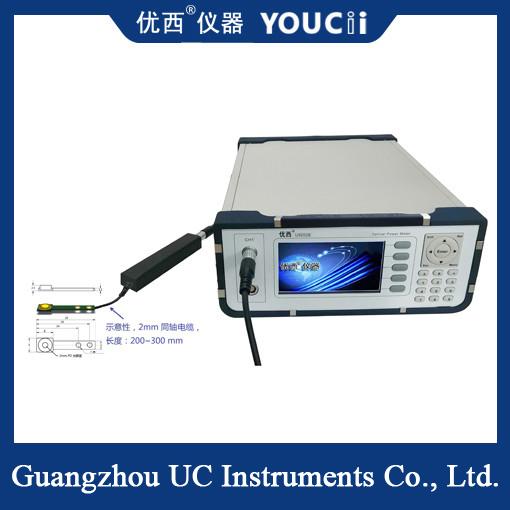

U8202B optical power meter is an advanced instrument for measuring optical power. The measuring wavelength range is 900-1700 nm. The calibration wavelength of the power meter is 1310/1550/1650nm. The optical fiber type belongs to the standard single-mode and multi-mode fiber, with a diameter of 62.5um. The U82024 ultra-thin PD external optical power meter is fast and easy to carry.

Features:

1.Product Name: U8202B+U82024 Optical Power Meter

2.Display: LCD

3.Calibration: Factory

4.Operating Temperature: 0 ～ +40℃ 4.Dimension: 245 mm W, 105 mm H, 320 mm D

5.Power Supply: AC Adapter

6.Wavelength Range: 900 ~ 1700 nm

7.Power Range:+10 ~ - 45 dBm

Technical Parameters:

Parameter Value

Number of Channels

Dual Ch. (Single Ch. Optional )
Weight 2 Kg

PD Size

φ2 mm
Calibration Factory
Wavelength Range

900 ~ 1700 nm
Display LCD
Data Interface USB/RS232

Support and Services:

Optical Power Meter Technical Support and Service

Our Optical Power Meter is designed to provide accurate and reliable power measurements for a variety of optical applications. We offer comprehensive technical support and service for our Optical Power Meter products, including:

  • Installation and setup assistance
  • Troubleshooting and diagnostics
  • Calibration and maintenance
  • Compatibility testing and software updates

From basic operation and maintenance to advanced troubleshooting and calibration, our experienced team of technical professionals is here to help you get the most out of your Optical Power Meter. Contact us today for more information on our technical support and service offerings.

Dual Channel Optical Power Meter Ultra-Thin PD External High Precision
