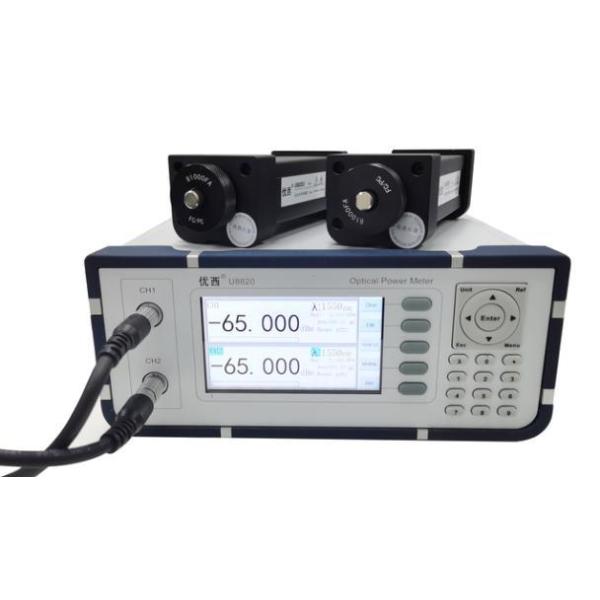

High-Precision Optical Power Meter Multi-Function Light Source Tester
High-Precision Optical Power Meter Multi-Function Light Source Tester
Specifications
Brand Name :
YOUCii
Model Number :
U8820+2*U88203
Place of Origin :
CHINA
MOQ :
1pcs
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Certification :
CU,IOS
Price :
negotiate a price
Supply Ability :
20pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Description

High-Precision Optical Power Meter Multi-Function Light Source Tester

Product Description:

U8820+2×U8820x optical power meters offer superior performance for the testing of DWDM components, AWG &PLC components, optical amplifiers, and other general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.
The U8820+2×U8820x optical power meter test systems are efficient, compact sized, fast-starting, and affordable. They provide low power, high power, single channel and dual channel optical power meter Probe options. Guangzhou U also Provides up to 64 channel host systems.

Features:

1.Sensor Elemen:InGaAs

2.Power Range:+25 ~ -65dBm

3.Linearity (power):≤ ± 0.05 dB (1200 nm ~ 1610 nm, 0~ -50dBm)

4.Resolution:0.001dB

5.Recalibration Period:2 Years

Technical Parameters:

Model # U8820 + 2xU88201 U8820 + 2xU88202 U8820 + 2xU88203
Sensor Element InGaAs
Power Range +5 ~ -85dBm +15 ~ -75dBm +25 ~ -65dBm
Wavelength Range 850 ~ 1700 nm

Power sampling period(rate)

 100 us(10KHz)
Application Fiber Type Standard SM and MM up to 62.5 um core size

Absolute Uncertainty (accuracy) at reference condition

 ± 4% (1200 nm ~ 1610 nm)

Relative Uncertainty (accuracy) at reference condition

 ＜ 0.02 dB Typical
Linearity (power) ≤ ± 0.05 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Resolution 0.001dB
Return Loss ＞ 40 dB
Communication Interface RS232 / USB / RJ45
Operation Temperature 0 ～ +40℃
Storage Temperature -30 ～ +80℃
Recalibration Period 2 Year
Dimensions 245 mm W, 105 mm H, 320 mm D
Weight 4.0 kg

Support and Services:

Our Tunable Laser Source products come with a comprehensive technical support and service package. Our team of experienced engineers is available to provide assistance with:

  • Product installation and setup
  • Troubleshooting
  • Product maintenance and care
  • Software and firmware updates
  • Product customization and optimization
