QSFP28 EVB Active Module Performance Evaluation Test Board QSFP+
QSFP28 EVB Active Module Performance Evaluation Test Board QSFP+
Specifications
Brand Name :
YOUCii
Model Number :
U9604
Place of Origin :
CHINA
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability :
15 pcs+per month
Delivery Time :
21 work days
Packaging Details :
Carton
Certification :
CU,IOS
Deviation voltage adjustment accuracy :
5 mV
Monitoring voltage accuracy :
5 mV
Operating temperature :
-40~85°C
Monitoring current :
0~2000 mA
Power supply voltage (external DC power input voltage) :
4~5.5V
Input/output level mode :
CMl
Description

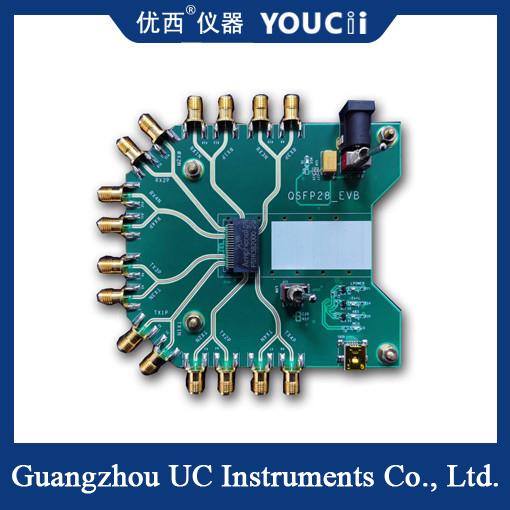

QSFP28 EVB Active Module Performance Evaluation Test Board QSFP+

This product is designed to evaluate the performance of QSFP+ and QSFP28 packaged active modules with four input/output channels in each transmitting and receiving terminal. Single-terminal NRZ rates range from 10G~32Gbps and PAM4 baud rates range from 25GBoud~28GBoud. Supported modules include NRZ 40G and 100G products. And PAM4 50G, 100G, 200G products, using error meter equipment, attenuator and oscilloscope equipment, to evaluate the active module's transmission performance indicators (such as eye image related indicators), reception performance indicators (such as sensitivity indicators), read and write module EEPROM information, etc.

QSFP28 EVB Active Module Performance Evaluation Test Board QSFP+ Technical index

NO.

index

Maximum value

Minimum value

unit
1

Data rate

 56 10.3125 Gbps
2

Adjustable output supply voltage

 4 2.8 V
3

Deviation voltage adjustment accuracy

 5 mV
4

Monitoring voltage accuracy

 5 mV
5

Monitoring current

 2000 0 mA
6

Monitoring current accuracy

 0.1 mA
7

I2C rate

 400 100 KHz
8

Power supply voltage (external DC power input voltage)

 5.5 4 V
9

Operating temperature

 85 -40 °C
10

Communication mode

USB HID, no drive.
11

TX,RX Electrical interface type

 40GHz 2.92mm female
12

Input/output level mode

 CML

QSFP28 EVB Active Module Performance Evaluation Test Board QSFP+
