QSFP Performance Evaluation Of The 400G PAM4 Active Module Test Board

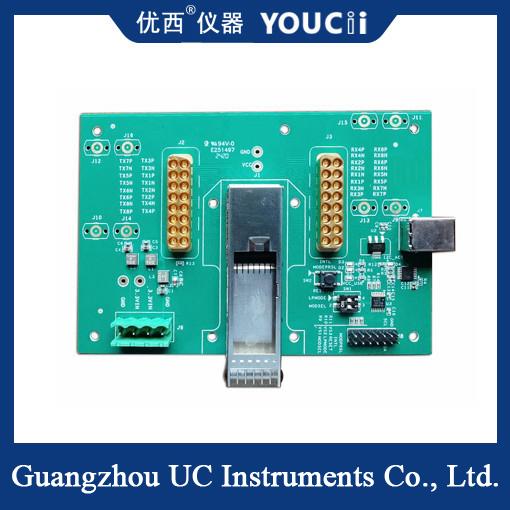

The coaxial Connectors were used to evaluate the performance of the 400G PAM4 active module encapsulated in QSFPDD using a group of 40GHz 2x8 multi-Pin connectors in each of the transmitting and receiving positions. The PAM4 baud rate ranges from 25GBoud to 28GBoud Error meter, attenuator, oscilloscope and other equipment are used to evaluate the transmission performance indicators (such as eye image related indicators), receiving performance indicators (such as sensitivity indicators), read and write module EEPROM information and so on. The real object is shown in the picture below:

QSFP-DD EVB Performance Evaluation Of The 400G PAM4 Active Module Test Board Technical index

NO.

pointer

Maximum value

Minimum value

unit
1

Data rate

 28 25 GBd
2

Adjustable output supply voltage

 4 2.8 V
3

Deviation voltage adjustment accuracy

 5 mV
4

Monitoring voltage accuracy

 5 mV
5

Monitoring current

 4000 0 mA
6

Monitoring current accuracy

 0.1 mA
7

I2C rate

 400 100 KHz
8

Power supply voltage (external DC power input voltage)

 5.5 4 V
9

Operating temperature

 85 -40 °C
10

Communication mode

USB HID, no drive.
11

TX,RX Electrical interface type

 40GHz 2x8 Multi-coaxial Connectors
12

Input/output level mode

 CML
13

Maximum support power consumption

 25W

Product characteristics

1. QSFPDD encapsulates the interface and applies to the QSFPDD 400G PAM4 optical module.

2. PAM4 baud rate ranges from 25 GBD to 28 GBD.

3. TX,RX electrical interface type: 40GHz 2x8 Multi-coaxial Connectors, CML level input-output coaxial Connectors;

4, support current real-time monitoring and overcurrent protection.

5, Support the power supply voltage deviation test, the voltage range is 2.8~4.V adjustable, meet the module deviation of the minimum 3.0V and maximum 3.6V voltage test, as well as real-time voltage monitoring, the default 3.3V output, according to the current module real-time adjustment of the output voltage, to ensure that the power supply voltage under different loads is stable within the range of 10mV.

6, support industrial temperature environment application.
