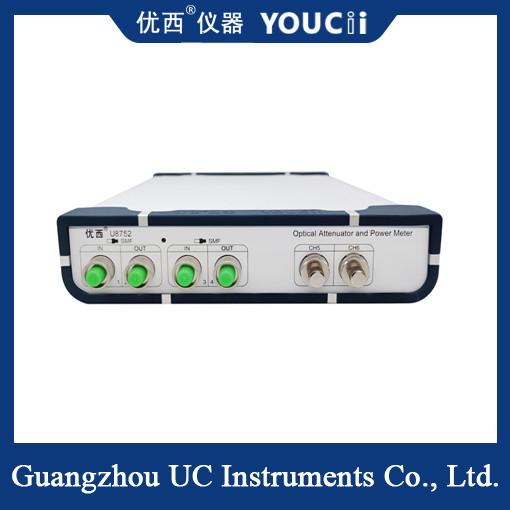

2 - Channel Optical Attenuator And Power Meter 1270 / 1310 / 1490 /1550 /1610 Nm
2 - Channel Optical Attenuator And Power Meter 1270 / 1310 / 1490 /1550 /1610 Nm
Specifications
Brand Name :
YOUCii
Model Number :
U8752
Certification :
CU,IOS
Place of Origin :
China
Operation Mode :
Power Setting mode
Range :
+5 ~ -70dBm
Calibration Wavelength :
1270 / 1310 / 1490 /1550 /1610 nm
Connector Type :
FC/SC/LC Option
Operation Temperature :
0～ +40 ℃
Dimensions :
235 mm W, 55 mm H, 320 mm D
Description

2-Channel Optical Attenuator and Power Meter 1270 / 1310 / 1490 /1550 /1610 nm

Outline

Optical power meter combined with optical attenuator, small size, easy to carry. Optical power meters can be used for high precision waves

DWDM component, AWG component of optical Waveguide Grating array, PLC component of planar optical Waveguide, WSS,

OPM, DPSK, optical amplifiers EDFA and other general optical fiber measurement applications. Be especially suitable for

A multi-channel optical power meter sampling system is assembled.

Characteristic point

The optical attenuation and optical power output can be set quickly and accurately, and the optical power control stability time is less than 200

ms.

The multi-channel attenuator is set at the same time, and multiple ports are measured simultaneously, which saves a lot of measurement time.

Built-in high-precision optical power meter ensures the stability and accuracy of power monitoring.

Small size, compact structure, simple operation, intuitive graphical user interface, multi-channel data simultaneously

Preview, test status at a glance.

Model # U8752
Operation Mode Power Setting mode
Range +5 ~ -70dBm
Resolution 0.001 dB
Repeatability

±0.02 dB
Calibration Wavelength 1270 / 1310 / 1490 /1550 /1610 nm
Fiber Type SMF and MMF
Connector Type FC/SC/LC Option
Accuracy (By Optical Power Monitoring)

±0.02 dB
Averaging time of monitor PM 2 ms ~ 1 s
Maximum safe input power +5dBm
Recalibration Period 2 years
Operation Temperature 0～ +40℃
Storage Temperature -30～+80℃
Power 100~240 V
Dimensions 235mm W, 55mm H, 320 mm D
Weight 3.0 kg
