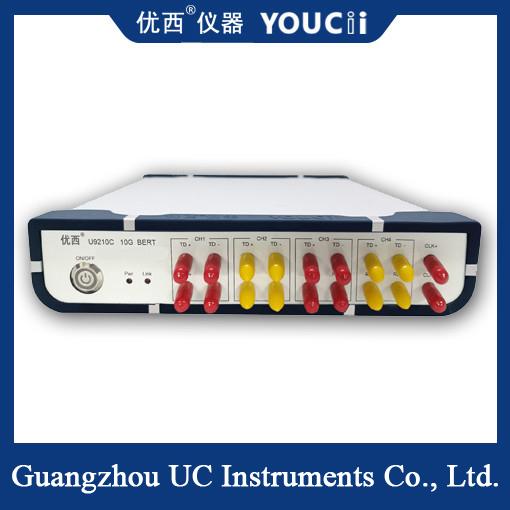

10G Full Rate Error Meter 4 Channel USB HID Or USB-COM
10G Full Rate Error Meter 4 Channel USB HID Or USB-COM
Specifications
Brand Name :
YOUCii
Model Number :
U9210C
Certification :
CU,IOS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Number of channels :
4 (4-channel electrical port, PG and ED supported)
Code type :
PRBS7,PRBS9,PRBS15,PRBS23,PRBS31
Rise and fall time (20% to 80%) :
18~23 ps
Data output jitter (RMS) :
1.5(10.3125G)
Description

10G Full Rate Error Meter 4 Channel USB HID Or USB-COM

Basic performance features:

1. Four-channel parallel PG and ED; Single-ended clock output.

2, PG and ED support rates range from 0.622 to 11.7 Gbps (up to 15G, optional).

3, support code type: PRBS7 / PRBS 9 / PRBS 15 / PRBS 23 / PRBS 31.

4, Support continuous error detection and timing error monitoring.

5, communication mode: USB HID (no drive) or USB-COM.

Technical specification:

No. parameter minimum typical maximum unit
1 Data rate 0.622 0.622,1.25,2.125,2.488,2.5,3.07,3.125,4.25,5.0,6.144,6.25,7.5,8.5 ,9.953,10.00,10.3125,10.52,10.709,11.09,11.32,11.7 11.7 Gbps
2 Number of channels 4 (4-channel electrical port, PG and ED supported)
3 Code type PRBS7,PRBS9,PRBS15,PRBS23,PRBS31
4 Rise and fall time (20% to 80%) 18 23 ps
5 Pattern reversal Supports signal reversal at the transmitting and receiving ends
6 Signal differential output amplitude 200 600 1000 mV
7 Data output jitter (RMS) 1.5(10.3125G) ps
8 Data input/output interface Differential, AC coupling, 50 ohm impedance, SMA
9 Clock output 100 156.25 156.25 MHz
10 Data signal input sensitivity 50 mVpp
11 Data output eye graph crossing point (difference) 49 50 52 %
12 USB HID response time 10 ms
13 Operating temperature 10 25 50 °C
14 Operating voltage (AC) 180 220 250 V

A Four-Channel Bit Error Rate Tester is an instrument used to assess the Bit Error Rate (BER) in a digital communication system. BER refers to the proportion of bits transmitted that have errors during digital communication.

A four-channel error meter usually has four independent channels, each used for analog or detecting the transmission and reception of digital signals. They are called "sending channels" and "receiving channels". The sending channel is responsible for generating and transmitting the digital signal, while the receiving channel is used to receive and analyze the received signal to determine the bit error rate.
