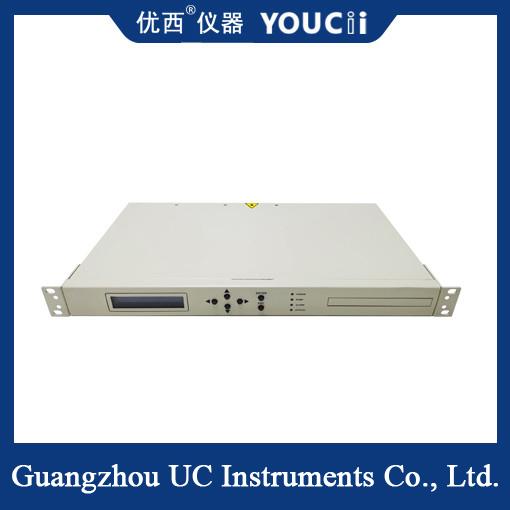

EDFA Erbium - Doped Fiber Amplifiers Stable Performance And High Cost Performance
EDFA Erbium - Doped Fiber Amplifiers Stable Performance And High Cost Performance
Specifications
Brand Name :
YOUCii
Model Number :
U8331C-30
Certification :
CU,IOS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Working wavelength :
1530~1565nm
Input power :
-40~-10 dBm
return loss :
-45dB
Working Mode :
Automatic Gain Control
Optical interface type :
FC/APC,900um,0.5M
Working voltage :
100~220V AC power adapter
Description

EDFA Erbium-Doped Fiber Amplifiers Stable Performance And High Cost Performance

Instructions:

The modular fiber amplifier (Erbium-doped fiber amplifier) is designed for laboratory and factory test equipment, and the core device uses the highly stable Pump laser and excellent optical path design to ensure high performance spectral characteristics. Unique ATC

And the APC circuit ensures the stability of the output power. Superior performance of the dual microprocessor makes the operation and remote control more simple and intelligent. Open RS232 port to ensure connectivity with any network management system.

This product is produced under the same production process and quality system as the company's annual output of thousands of electrical fiber optic amplifiers to ensure the carrier-grade quality of the product.

This product uses single-mode erbium-doped or ytterbium-doped fiber amplification technology, with a maximum saturation output power of 200mW(23dBm), for more output power, please see our HA series products (up to 10W). Other structural forms: modular, 1U rack, 3U structure is optional.

specification

Model U8331MA-30
Parameter Min Typ Max Units
Working wavelength 1530 1565 nm
Output Power 0 dBm
Input power -40 -10 dBm
Gain 30 dB
Noise Figure (@-30dBm input) 4.5 5.0 dB
Output power stability ±0.05 ±0.1 dB
Input isolation 30 dB
Output isolation 30 dB
Input pump leak -35 dBm
Output Pump Leak 0 -45 dBm
return loss -45 dB
Polarization dependent gain 0.3 dB
Polarization Mode Dispersion 0.5 ps
Operating temperature 0 45 ℃
Storage temperature -40 80 ℃
Power consumption 25 W
Working Mode Automatic Gain Control
Optical interface type FC/APC,900um,0.5M
Working voltage 100~220V AC power adapter
Dimensions 90x70x15 mm
