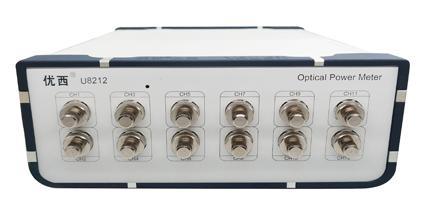

2/4/6/8/12/16 Multi - Channel Optional Power Meter ± 0.06 DB 850nm Wavelength
2/4/6/8/12/16 Multi - Channel Optional Power Meter ± 0.06 DB 850nm Wavelength
Specifications
Brand Name :
YOUCii
Model Number :
U8212
Place of Origin :
CHINA
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50pcs+per month
Delivery Time :
10 work days
Packaging Details :
Carton
Product name :
Light Source Power Meter
Calibration Wavelength :
850nm 980nm 1310nm
Power Range :
+10 ~ -65dBm
Linearity (power) :
≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Fiber Type :
Standard SM and MM up to 62.5 um core size
Operation Temperature :
0 ～ +40℃
Description

2/4/6/8/12/16 Multi-Channel Optional Power Meter ± 0.06 DB 850nm Wavelength

2/4/6/8/12/16 Multi-Channel Optional Power Meter

U8212/16 12/16 channel optical power meters offer superior performance, economical and practical for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume prodUtion lines.

U8212/16 optical power meter test systems are efficient, compact sized, fast-starting, and affordable. We provide low power, high power, Multi-channel optical power meter options.

2/4/6/8/12/16 Multi - Channel Optional Power Meter ± 0.06 DB 850nm Wavelength

Model # U8212 U8216 U8212B U8216B
Number of Channels 12 16 12 16
Power Range +10 ~ -65dBm +25 ~ -50dBm
Wavelength Range 850 ~ 1700 nm
Calibration Wavelength 850/980//1310/1490/1550/1610 nm(or other wavelengths are optional)
Sampling period 1ms (1KHz)
Application Fiber Type Standard SM and MM up to 62.5 um core size

Absolute Uncertainty (accuracy) at reference condition

 ± 4% (1200 nm ~ 1610 nm)

Relative Uncertainty (accuracy) at reference condition

 ＜ 0.02 dB Typical
Linearity (power) ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Return Loss ＞ 40 dB
Operation Temperature 0 ～ +40℃
Storage Temperature -30 ～ +80℃
Recalibration Period 2 years
Dimensions 245 mm W, 105 mm H, 320 mm D
Weight 2.0 kg

Note: Multiple configurations exist for U82xx: xx indicates the number of channels. Optical interfaces can be FC, LC, or SC
