Dual Channel DFB Laser Source Butterfly 850nm 980nm 1310nm 1550nm
Dual Channel DFB Laser Source Butterfly 850nm 980nm 1310nm 1550nm
Specifications
Brand Name :
YOUCii
Model Number :
U8132
Place of Origin :
CHINA
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20pcs+per month
Delivery Time :
21 work days
Packaging Details :
Carton
Optional Wavelength :
850/980/1270/1290/1310/1330/1350/1370/1390/1410/1430/ 1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 nm etc.
Connector Type :
FC/APC
Output Power Stability within 15mins :
≤±0.005 dB
Output Power Stability within 8 hrs :
≤±0. 05 dB
Device Package :
Butterfly
Output Power :
≥10.0mW
Description

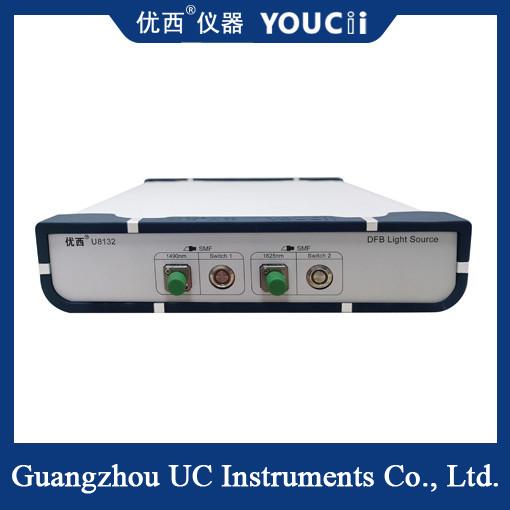

U8132 Dual Channel 850nm 980nm 1310nm 1550nm DFB Laser Source Butterfly Laser

The U813n multi-channel laser light source can be used in the measurement and application of WDM devices, DWDM devices with high precision WDM devices, AWG devices with optical waveguide grating array, planar optical waveguide PLC devices, optical amplifier EDFA and other general optical fiber optics, especially in the mass production and detection of couplers and planar optical waveguide PLC devices.

Particular point

The U813n multi-channel laser light source has the characteristics of high output stability, small size and fast start-up. Light source equipment can provide multiple channels of fixed wavelength light source output signal. Guangzhou Youxi can also be customized according to customer needs, 850, 980, 1250,1270... 1610,1625 nm, etc. Any two or four or more wavelength combination light source equipment.

Dual Channel DFB Laser Source Butterfly 850nm 980nm 1310nm 1550nm

Specification

Model # U8132
Device Package TO
Optional Wavelength

850/980/1250/1270/1290/1310/1330/1350/1370/1390/1410/1430/

1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 nm etc.
Wavelength Accuracy ± 3 nm
Output Power ≥1.0mW
Connector Type FC/APC ( Other Adaptor Can Be Customized)
Bandwidth@3 dB ＜ 0.1 nm
Bandwidth@20 dB ＜0.5 nm
Output Power Stability within 15mins ≤±0.01 dB
Output Power Stability within 8 hrs ≤±0. 05 dB
SMSR ＞ 35 dB (850/980nm),＞ 40 dB(1250nm etc.)
Operation Temperature 0～ +40 ℃
Storage Temperature -30～+80 ℃
Dimensions 235 mm W, 55 mm H, 320 mm D
Weight 3.0 kg
