10G Four Channel Multi Rate Error Meter 9.953/10.3125G BERT
10G Four Channel Multi Rate Error Meter 9.953/10.3125G BERT
Specifications
Brand Name :
YOUCii
Model Number :
U9210B
Place of Origin :
CHINA
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, D/A
Supply Ability :
5pcs+per month
Delivery Time :
21 work days
Packaging Details :
cartons
Communication/network management interface :
USB: Support USB1.0/2.0, user operation and graphical display interface based on PC software;
Power :
external 5V power adapter
Rated output of power adapter :
5V5A
Operating temperature :
-20℃ to +50℃
Description

10G Four-Channel Multi-Rate Error Meter (9.953/10.3125G)BERT

U9210B Serial error tester features

9.953Gbps to 11.3Gbps code generators and error detectors

· Input sensitivity less than 50 mVpp

· Fast bit mode synchronization

· Intuitive user interface and Windows operating system

· Support remote control commands

Standard code type selection:

PRBS7, PRBS9, PRBS15, PRBS23, PRBS31

Support for standards and rates

9.953Gbps, 10.3125Gbps, 10.519Gbps, 10.702Gbps, 11.096Gbps, 11.317Gbps

Communication/network management interface

USB: Support USB1.0/2.0, user operation and graphical display interface based on PC software;

Convenient remote operation, network management and monitoring.

Power: external 5V power adapter:

Rated output of power adapter: 5V5A

Power adapter input specifications: 90~240V, 50~65Hz, 10W,

Ambient temperature

Operating temperature: -20℃ to +50℃

Storage temperature: -40℃ to +85℃

Relative humidity

Ambient humidity: 20% to 80%

Storage humidity: 5% to 90%

Physical characteristics

Dimensions: 235W×55H×255L (mm)

weight

Less than 2kg

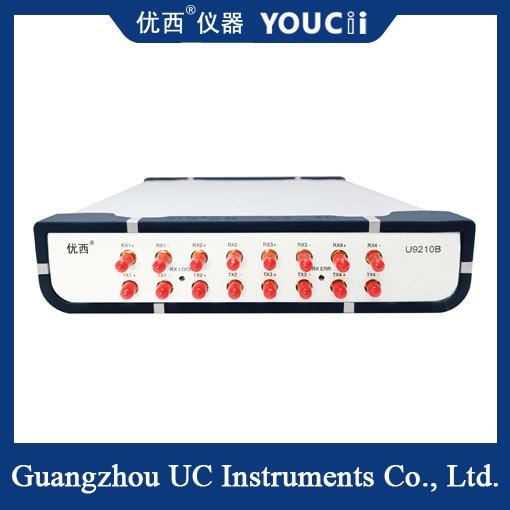

The U9210B serial bit error tester is a universal bit error rate tester designed for testing high-speed digital communication components and systems. The serial error tester provides the code generation and error detection function with the highest rate of 11.3Gbps at a very high cost performance. The analyzer provides four differential electrical ports (up to 11.3Gbps) for error testing. The U9210B is compact and small in size. Support USB or Ethernet communication interface, can make it more smoothly integrated into the automated test environment.
