Benchtop Adjustable Light Source For High Precision WDM DWDM Components
Benchtop Adjustable Light Source For High Precision WDM DWDM Components
Specifications
Brand Name :
YOUCII
Model Number :
U8112
Certification :
CU,IOS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T
Supply Ability :
20 pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Band Option :
O/C/L/CL
Power Adjust Range （Option） :
25 dB
Absolute wavelength accuracy :
± 10 pm, typ. ＜ 5 pm
Relative wavelength accuracy :
±5 pm, typ. ± 2 pm
Tuning speed :
Tuning speed
Power :
AC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max.
Description

Benchtop Adjustable Light Source For High Precision WDM DWDM Components

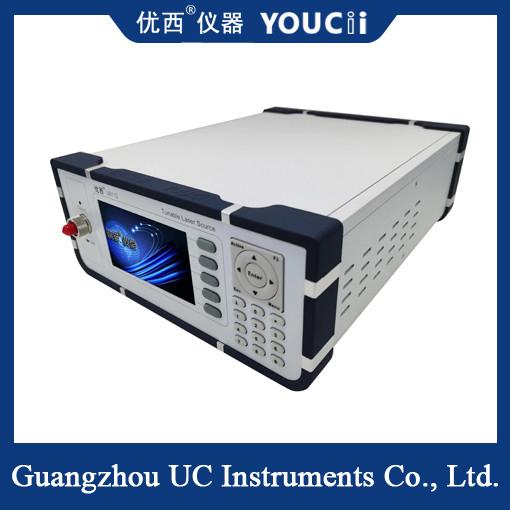

The U8112 benchtop tunable light source is a powerful device, which is mainly used for high precision WDM components, optical waveguide grating array AWG components, planar optical waveguide PLC components, optical amplifier EDFA, DWDM systems and other general optical fiber measurement and applications. It has the characteristics of high wavelength accuracy, large output power, small size, fast start-up and affordable, so that it has a wide range of applications in the field of optical fiber communication and optical measurement.

Specifically, the high wavelength accuracy of the U8112 desktop adjustable light source can ensure the accuracy of the measurement results, and the large output power can meet the needs of various complex application scenarios. At the same time, its small size and fast start-up speed make the device more convenient and efficient when using. Affordable price is also a big advantage of the device, saving costs for users and improving the cost performance ratio.

Specification

Model # U8112
Band Option O C L CL
Wavelength Tuning range (nm) 1260~1360 1525~1568 1568~1610 1525~1610
Output Power ≥ 7dBm ≥ 13dBm ≥ 10dBm ≥ 7dBm
Power Adjust Range (Option) 25 dB
Wavelength resolution 1.0 pm
Absolute wavelength accuracy ± 10 pm, typ. ＜ 5 pm
Relative wavelength accuracy ±5 pm, typ. ± 2 pm
Wavelength repeatability ± 2 pm, typ. ±1 pm
Wavelength stability ≤± 2 pm (24 hrs at constant temperature)
Tuning speed ≤ 2 ms per step
Power stability ≤ ± 0.01dB, (15min).
Power repeatability ± 0.05dB
Power linearity ± 0.3dB
Power flatness versus wavelength 0.3dB typ. 0.5dB max.
Side-mode Suppression ratio ≥ 35dB ≥ 45dB
Relative intensity noise ＜ -135dB
Power AC 100 - 240 V ± 10%, 48 - 66 Hz, 100 VA max.
Storage temperature −40°C to +80°C
Operating temperature 0°C to +45°C
Dimensions 245 mm W, 105 mm H, 320 mm D
Weight 2.0 kg

Benchtop Adjustable Light Source For High Precision WDM DWDM Components
