18 Channel Rack Mounted Optical Attenuators Available In One
18 Channel Rack Mounted Optical Attenuators Available In One
Specifications
Brand Name :
YOUCII
Model Number :
U8418
Certification :
CU,IOS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T
Supply Ability :
20 pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Operating wavelength :
850nm
Insertion loss :
≤1.2 dB
repeatability :
≤±0.02 dB
crosstalk :
≥35dB
Working power supply :
AC: 85 ～ 264（50/60Hz）
Operating temperature :
-5 ～ + 60℃
Description

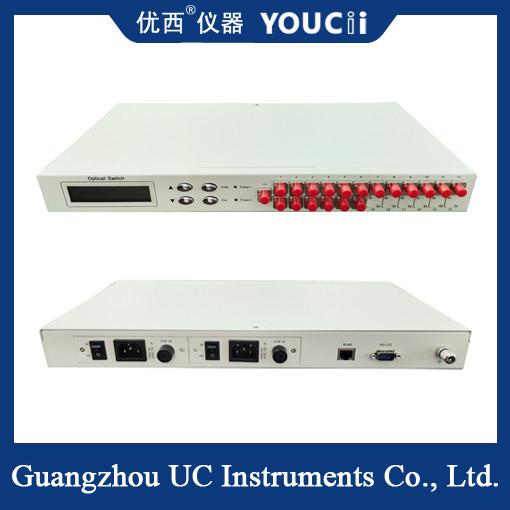

18-Channel Rack-Mounted Optical Attenuators Available In One

Product introduction

Optical switch is a kind of optical path control device, which plays the role of controlling optical path and converting optical path. It is important in optical communication applications
To function. Optical switch is mainly used in: multi-channel optical monitoring in optical transmission system, LAN multi-light source/detector automatic exchange
And optical sensing multi-point dynamic monitoring system; The optical test system is used for optical fiber, optical device, network and field engineering cable testing;
Optical device installation and adjustment. The 1 x 18 optical switch switches one input route to one of the eight output routes.
Product features
1.It has the characteristics of low insertion loss and fast switching speed.
2.LCD display, very intuitive display data, easy to operate.
3.Automatic scanning can be set, the maximum switching interval is 99 hours 59 minutes 59 seconds; Can also scan the "start channel"
And End Channel.
4. "Device address" can be set, so that users can control multiple optical switches with one serial port when serial port resources are tight
Turn off the instrument.
5.The baud rate of serial communication can be set according to the actual situation, and the baud rate can be set up to be 1200, 2400, 4800, 9600, 19200,
57600, 115200 seven kinds.

Technical parameter

Type number U8418
Operating wavelength 850nm
Test wavelength 850 nm
Insertion loss ≤1.2 dB
repeatability ≤±0.02 dB
Return loss ≥30dB
crosstalk ≥35dB
Polarization dependent loss ≤0.05
Switching time ≤ 10ms(Adjacent sequential switching)
Fiber type MM(50/125um)
Connector form FC/PC
Monitoring port RJ45,RS-232
Working power supply AC: 85 ～ 264(50/60Hz)
Operating temperature -5 ～ + 60℃
Storage temperature -40 ～ + 80°C
Chassis type 19 inch standard 1U rack(483×200×44mm)

18 Channel Rack Mounted Optical Attenuators Available In One
