Full Band Continuous Output Broadband Light Source 1260 ~ 1650 Nm
Full Band Continuous Output Broadband Light Source 1260 ~ 1650 Nm
Specifications
Brand Name :
YOUCII
Model Number :
U8144
Certification :
CU,IOS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T
Supply Ability :
20 pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Band wide @-10 dB :
≥390 nm
Spectral Density :
≥-28dBm/nm
Connector Type :
FC/APC (other adaptor can be customized)
Operation Temperature :
0～ +40 ℃
Storage Temperature :
-30～+80 ℃
Operation Wavelength :
1260 ~ 1650 nm
Description

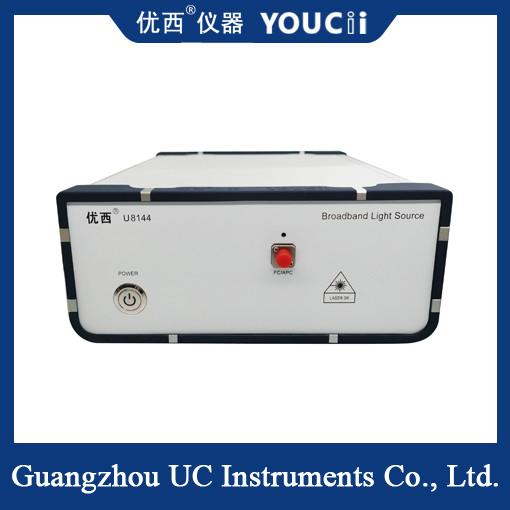

Full Band Continuous Output Broadband Light Source 1260 ~ 1650 Nm

summarize

U8144 broadband light source is composed of ultra-strong light-emitting diode (SLED) technology and butterfly packaging device. The single-band or full-band continuous output light source is constrUted by high stability driving and controlling circuit. The single band bandwidth can reach 100nm, and the full band bandwidth can reach 400nm.

U8144 broadband light source has the advantages of high stability, small size, fast start and affordable price. It provides the output of the broadband light source in the wavelength range of 1260 ~ 1650 nm.

Broadband light source is a special type of light source, which is widely used in scientific research, optical sensors, high-precision spectral analysis and space (wireless) optical communication. Specifically, it may be used to generate and transmit optical signals in a wide spectral range to meet the special needs of light sources in these fields.

Specification

Model # U8144
Operation Wavelength 1260 ~ 1650 nm
Band wide @-10 dB ≥390 nm
Output Power ≥10dBm
Spectral Density ≥-28dBm/nm
Connector Type FC/APC (other adaptor can be customized)
Spectral Density Stability within 15mins ＜± 0.03 dBm/nm
Output Power Stability within 15mins ＜±0.01 dB
Output Power Stability within 8 hrs ≤± 0.05 dB
Operation Model CW
Fiber Type Single Mode SFM-28
Operation Temperature 0 ～ +40℃
Storage Temperature -30 ～ +80℃
Power Supply AC 110 ~ 220 V±10%, 50Hz/60Hz, 20W
Dimensions 235mm W, 55 mm H, 320 D mm
Weight 3.0 kg

Full Band Continuous Output Broadband Light Source 1260 ~ 1650 Nm
