Multi - Channel Multi-Mode Optical Attenuator Attenuation Range 0~40 DB
Multi - Channel Multi-Mode Optical Attenuator Attenuation Range 0~40 DB
Specifications
Brand Name :
YOUCII
Model Number :
U8320
Certification :
CU,IOS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T
Supply Ability :
20 pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Attenuator Range :
0~40 dB
Insertion Loss :
≤ 1.5 dB
Connector Type :
FC/PC Connector
Repeatability :
≤±0.05 dB
Attenuation Transition Speed :
0.1 ~ 35 dB/s
Storage Temperature :
-30 ~ +80℃
Description

Multi-Channel Multi-Mode Optical Attenuator Attenuation Range 0~40 DB

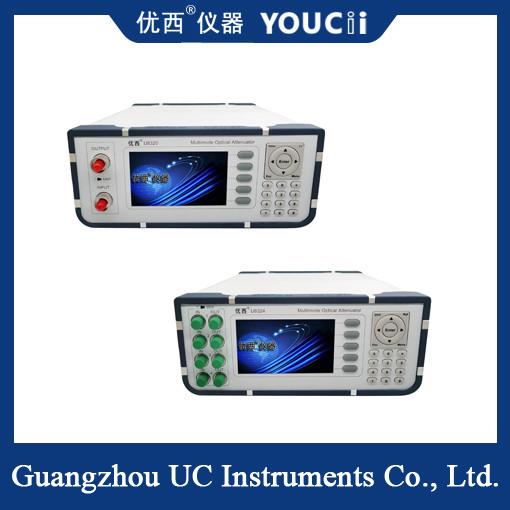

U8320 Desktop Variable Optical Attenuator offers superior performance for channel balancing, power equalization, gain tilt and power adjustment of DWDM systems, EDFA, Interleaver, WSS, OPM, DPSK, AWG & PLC components, optical amplifiers, and other general purpose fiber optic test and measurement applications.

The advantages of U8320 desktop optical attenuator are high measurement accuracy, good stability, easy operation and maintenance. It usually uses a highly stable light source and a high-precision photoelectric converter to achieve fast and accurate measurements. In addition, benchtop optical attenuators are available in a variety of interface types and specifications to meet the needs of different fiber optic networks.

When using a desktop optical attenuator, the following points need to be noted:

Ensure that the optical fiber to be tested is clean and dry, free of impurities such as dust and oil.
When connecting and measuring optical fibers, be careful to avoid optical fiber breakage or damage caused by excessive force.
During the measurement process, the stability and cleanliness of the optical attenuator should be maintained to avoid external interference;
In the process of use, pay attention to follow the operating procedures to avoid damage to the optical attenuator and the optical fiber to be measured.

Specification

Model # U8320
Attenuator Range 0~40 dB
Wavelength Range 850 nm
Insertion Loss ≤ 1.5 dB
Fiber type MMF 50/62.5 self-adaptation
Connector Type FC/PC Connector
Attenuator Accuracy ≤ ± 0.2 dB
Repeatability ≤±0.05 dB
Attenuation Transition Speed 0.1 ~ 35 dB/s
Polarization Depend Loss ≤0.25 dB (0 ~ 40 dB).
Return Loss ＞ 30 dB
Recalibration Period 2 years
Operation Temperature 0～ +40℃
Storage Temperature -30～+80℃
Power 100~240 V
Dimensions 245 mm W, 105 mm H, 320 mm D
Weight 2.0~5.0 kg
