1270/1290/1310/1370nm Polarization Preserving Light Source Wavelength Can Be Customized
1270/1290/1310/1370nm Polarization Preserving Light Source Wavelength Can Be Customized
Specifications
Brand Name :
YOUCii
Model Number :
U8134
Place of Origin :
CHINA
Certification :
CU,IOS
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T
Supply Ability :
20 pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Optional Wavelength :
850/980/1270/1290/1310/1330/1350/1370/1390/1410/1430/ 1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 nm etc.
Bandwidth@3 dB :
＜ 0.1 nm
Bandwidth@20 dB :
＜ 0.5 nm
Output Power :
≥10.0mW
Weight :
3.0 KG
Device Package :
Butterfly
Description

1270/1290/1310/1370nm Polarization-Preserving Light Source Wavelength Can Be Customized

Outline

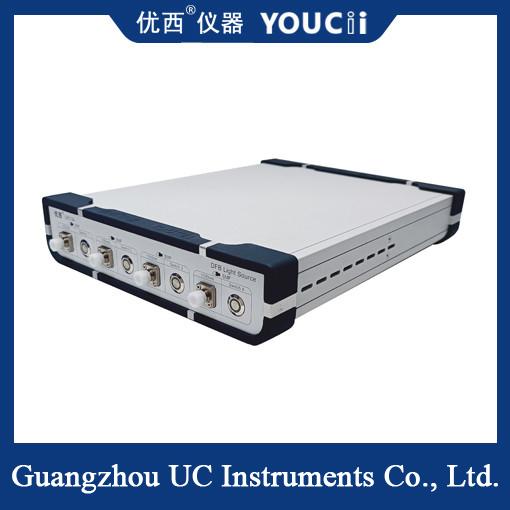

U812n/U813n multi-channel laser light source can be used in WDM CWDM device, high precision WDM DWDM device, AWG device of optical waveguide grating array, planar optical waveguide PLC device, optical amplifier EDFA and other general optical fiber measurement and application. Especially suitable for the mass production of couplers and planar optical waveguide PLC components.

Characteristic point

The U812n/U813n multi-channel laser light source has the characteristics of high output stability, small size and fast start-up. The light source device can provide multiple channels of fixed wavelength light source output signals. Guangzhou Youxi can also according to customer needs, customized 850, 980, 1250,1270,... 1610,1625 nm, etc. Any two or four or more wavelengths of the combination of light source devices.

Product regulation

Model # U8120 U8130
Device Package TO Butterfly
Optional Wavelength

850/980/1270/1290/1310/1330/1350/1370/1390/1410/1430/

1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 nm etc.
Wavelength Accuracy ± 3 nm ± 2 nm
Output Power ≥1.0mW ≥10.0mW
Connector Type FC/APC (Other Adaptor Can Be Customized)
Bandwidth@3 dB ＜ 0.1 nm
Bandwidth@20 dB ＜ 0.5 nm

Output Power Stability within 15mins

 ≤±0.01 dB ≤±0.005 dB

Output Power Stability within 8 hrs

 ≤±0. 05 dB
SMSR ＞ 35 dB (850/980nm),＞ 40 dB(1270nm etc.)
Operation Temperature 0～ +40 ℃
Storage Temperature -30～+80 ℃
Dimensions 235 mm W, 55 mm H, 320 mm D
Weight 3.0 kg

Other customers will ask questions:

1.What is the frequency of light source?
The visible light frequency is 400 THz to 700 THz, approximately. A THz is a Terahertz, which is a unit of frequency equal to one trillion Hertz. The electromagnetic spectrum.

2.Why does light have a speed limit?
Nothing can travel faster than 300,000 kilometers per second (186,000 miles per second). Only massless particles, including photons, which make up light, can travel at that speed. It's impossible to accelerate any material object up to the speed of light because it would take an infinite amount of energy to do so.
