Handheld Dual-Wavelength Light Source Multi-Wavelength High Stable Output
Handheld Dual-Wavelength Light Source Multi-Wavelength High Stable Output
Specifications
Brand Name :
YOUCII
Model Number :
U8612
Certification :
CU,IOS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T
Supply Ability :
20 pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Light source type :
FP / LD
Wavelength (nm) :
1310/1550
Output power (dBm) :
≥-7
Fiber type :
Single mode/multi-mode optional
Power source :
3 AA alkaline batteries (60 hours continuous operation)
Weight (without battery) :
285g
Description

Handheld Dual-Wavelength Light Source Multi-Wavelength High Stable Output

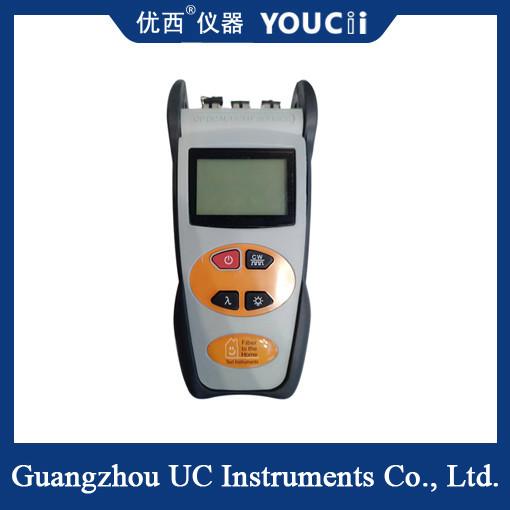

The U8612 handheld dual-wavelength light source is a powerful and well-designed device. It not only performs well in optical network installation, acceptance and maintenance, but also shows a wide range of application values in laboratory and field tests.

This device has dual wavelength light source capability to meet different test requirements. Its large LCD display allows users to clearly view various parameters and status information, which is convenient for users to quickly select wavelengths.

Product features:

  • Multi-wavelength high stable output (up to 5 wavelengths);
  • High wavelength stability, single key switch working wavelength, flexible and convenient operation;
  • CW or modulated output;
  • Low voltage display function, battery low voltage detection function;
  • Backlight control function;
  • Large LCD displays working wavelength status;
  • Optional 10-minute automatic shutdown;

Specification

Product model U8612
Light source type FP / LD
Wavelength (nm) 1310/1550(Single mode, multi-mode 5 wavelengths available)
Output power (dBm) ≥-7 (single mode 1310/1490/1550/1625),≥-9 (multi-mode 850/1300 LD), ≥-23 (multi-mode 850/1300 LED)
Modulation mode CW / 270M,1K,2K
Output stability(dB) ±0.05 (18hours)
Fiber type Single mode/multi-mode optional
Power source 3 AA alkaline batteries (60 hours continuous operation)
Operating temperature(℃) -10～+60
Storage temperature(℃) -25～+70
Overall dimensions (mm) 200×90×50
Weight (without battery) 285 克

Handheld Dual-Wavelength Light Source Multi-Wavelength High Stable Output
