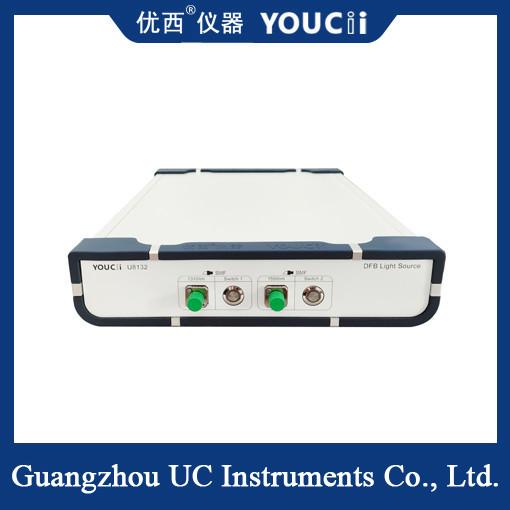

Double Channel Butterfly Point Light Source 1310/1550nm
Double Channel Butterfly Point Light Source 1310/1550nm
Specifications
Brand Name :
YOUCII
Model Number :
U8132
Certification :
CU,IOS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T
Supply Ability :
20 pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Optional Wavelength :
1305/1308
Bandwidth@3 dB :
＜ 0.1 nm
Output Power Stability within 15mins :
≤±0.005 dB
Output Power Stability within 8 hrs :
≤±0. 05 dB
Device Package :
Butterfly
Wavelength Accuracy :
± 2 nm
Description

Double Channel Butterfly Point Light Source 1310/1550nm

The characteristics of U8132 multi-channel DBF laser light source are mainly reflected in the following aspects:

Multi-channel design: The U8132 laser light source adopts multi-channel design, which can provide multiple independent laser output channels at the same time. This design enables the light source to capture multiple data points simultaneously in a single measurement, significantly improving test efficiency.
High stability: The laser light source has excellent stability and can maintain a stable output power and wavelength for a long time. This makes it highly reliable in application scenarios that require continuous operation for long periods of time.
Accurate control: U8132 laser light source has accurate control function, which can achieve accurate adjustment of output power, wavelength and pulse width. This precise control allows the light source to meet the needs of a variety of complex applications.
Compact structure: The compact design of the laser light source makes it small and easy to carry. This makes it ideal for field testing and mobile applications.

Specification

Model # U8130
Device Package Butterfly
Optional Wavelength 1305/1308
Wavelength Accuracy ± 2 nm
Output Power ≥10.0mW
Connector Type FC/APC ( Other Adaptor Can Be Customized)
Bandwidth@3 dB ＜ 0.1 nm
Bandwidth@20 dB ＜ 0.5 nm
Output Power Stability within 15mins ≤±0.005 dB
Output Power Stability within 8 hrs ≤±0. 05 dB
SMSR ＞ 45 dB(1270nm etc.)
Operation Temperature 0～ +40 ℃
Storage Temperature -30～+80 ℃
Dimensions 235 mm W, 55 mm H, 320 mm D
Weight 3.0 kg

NOTE:Single channel: U8131,Double Channel: U8132,Four Channel: U8134 etc.
