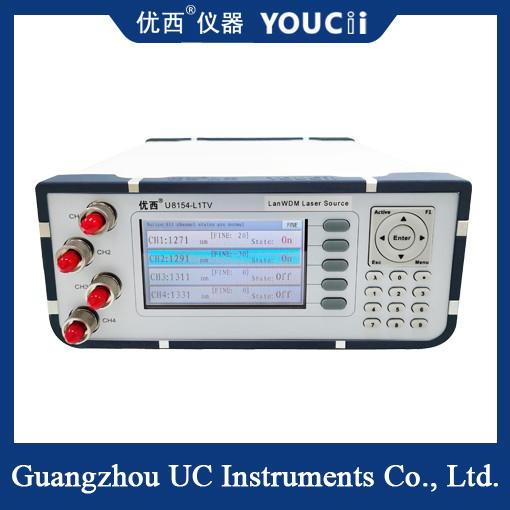

Four Wavelength Four Channel Output Lan WDM Light Source
Four Wavelength Four Channel Output Lan WDM Light Source
Specifications
Model Number :
U8154
Brand Name :
YOUCII
Certification :
CU,IOS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Device Package :
TO/Butterfly
Wavelength Accuracy :
± 1.0 nm
Output Power Stability (15min) :
≤±0.01 dB
SMSR :
＞ 40 dB
Bandwidth @20 dB :
＜ 0.5 nm
Bandwidth @3 dB :
＜ 0.1 nm
Description

Four-Wavelength, Four-Channel Output Lan WDM Light Source

Basic concepts of Lan WDM light source:

1. From the wavelength points: wavelength is defined as the L1:1271/1291/1311/1331 nm and L2:1295.56/1300.05/1304.58/1309.14 nm. Other wavelength combinations are named L3, L4,...

2. From the packaging form of light emitting devices, it is divided into: the first group L1, there are two kinds of packaging of coaxial devices and butterfly devices, and the second group L2, generally for butterfly device packaging. We define the coaxial package device as U8154-T (TO) and the Butterfly package device as U8154-B (Butterfly).

3. Divided from four wavelength output forms: there are four wavelengths divided into four outputs, and four wavelengths combined with one output; We define the four-wavelength four-way output as U8154 and the four-wavelength four-way output as U8151.

4. From the form of power output: general users need four wavelength equal power output, some users need four wavelength each power adjustable output (adjustable range of 30dB), we define equal power output as: U8154-P, power adjustable output U8154-V;

Model 8154-L1TP/8151-L1TP 8154-L1BP/V/ 8151-L1BP/V 8154-L2BP/V/8151-L2BP/V
Device Package TO Butterfly
Wavelength L1(1271/1291/1311/1331) L2(1295.56/1300.05/...)
Wavelength Accuracy ± 1.0 nm ± 0.5 nm
Output Power ≥ 1.0mW ≥ 8.0mW
Connector Type FC/APC (Other Adaptor Can Be Customized)
Bandwidth @3 dB ＜ 0.1 nm
Bandwidth @20 dB ＜ 0.5 nm

Output Power Stability (15min)

 ≤±0.01 dB

Output Power Stability (8hr)

 ≤±0. 05 dB ≤±0. 03 dB
SMSR ＞ 40 dB
Operation Temp 0～ +40 ℃
Storage Temp -30～+80 ℃
Dimensions 1U: 235mm W, 55mm H, 320mm D 2U: 245 mm W, 105 mm H, 320 mm D
Weight 3.0 kg

What is LANWDM?

The full name of LWDM is LAN WDM, which usually refers to a wavelength range dense wavelength division multiplexing technology using four wavelength division multiplexing technology in 100G optical modules. According to the LAN WDM wavelength defined by IEEE 802.3, it mainly covers 10km. Wavelength of 1295.56 nm and 1300.05 nm and 1304.58 nm and 1309.14 nm four wavelengths.
