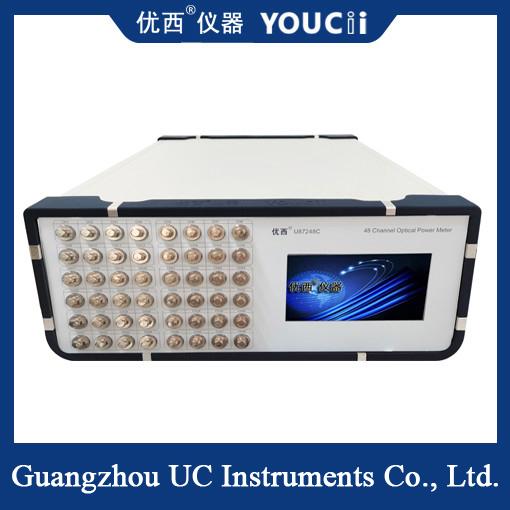

48-Channel Fast Scanning Optical Power Meter With Display
48-Channel Fast Scanning Optical Power Meter With Display
Specifications
Brand Name :
YOUCii
Model Number :
U87248C
Place of Origin :
CHINA
Certification :
CU,IOS
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Wavelength Range :
850 ~ 1700 nm
Communication Interface :
RS232, USB，Control by PC
Return Loss :
＞ 40 dB
Sampling period :
10us (100KHz)
Uncertainty (accuracy) :
± 4% (1200 nm ~ 1610 nm)
Dimensions :
245 mm W, 105 mm H, 320 mm D
Description

48-Channel Fast Scanning Optical Power Meter With Display

U87248C channel optical power meter is mainly used for high precision WDM components, optical waveguide grating array AWG components, planar optical waveguide PLC components, optical amplifiers and other general optical fiber measurement and application, superior performance, economic and practical.

The U87248C channel optical power meter measuring system has the characteristics of high performance, small size, fast start-up and affordable price. Guangzhou Youxi can provide low power, high power, in addition to 2 channel and 8 channel optical power meters for choice, now can provide up to 48 channel and 64 channel combined test systems.

should

Active optical module/Optical Device Test:

In the multi-channel error measurement of optical transceiver module, parallel data measurement is realized. In the sensitivity measurement of optical receiving module, it provides parallel, fast and accurate optical power input; 200ms optical power control stability time, greatly improve the test efficiency.

Optical communication network integration test:

Test network transmission performance and network management functions in optical communication network integration.

Model # U87248C
Sensor Element InGaAs
Wavelength Range 850 ~ 1700 nm
Calibration Wavelength 850 / 980 / 1310 / 1490 / 1510~1625 nm
Power Range +5 ~ -75dBm
Sampling period 10 us (100KHz)
Application Fiber Type Standard SM and MM up to 62.5 um core size
Uncertainty (accuracy) ± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) ＜ 0.02 dB Typical
Linearity (power) ≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0 ~ -60dBm)
Return Loss ＞40 dB
Communication Interface RS232, USB,RJ45 Control by PC
Operation Temperature 0 ～ +40℃
Storage Temperature -30 ～ +80℃
Recalibration Period 2 years
Dimensions 235 mm W, 55mm H, 320 mm D
Weight 3.0 kg

48-Channel Fast Scanning Optical Power Meter With Display
