Measurement Of Different Rate Devices Of 4 Channel 24.5~29Gb/S Tunable Bit Error Meter
Measurement Of Different Rate Devices Of 4 Channel 24.5~29Gb/S Tunable Bit Error Meter
Specifications
Brand Name :
YOUCII
Model Number :
U9225C
Certification :
CU,IOS
Place of Origin :
China
MOQ :
1pcs
Price :
negotiate a price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, T/T
Supply Ability :
7 pcs+per month
Delivery Time :
20 work days
Packaging Details :
Carton
Storage Temperature :
-20～+70 ℃
USB Pin Voltage :
-0.3~5.5V
Case Temperature :
5~45°C
Baud Rate Setpoint Accuracy :
-10~10 PPM
AC Voltage Frequency Range :
47~63Hz
AC Voltage Range :
90~246 AVC
Description

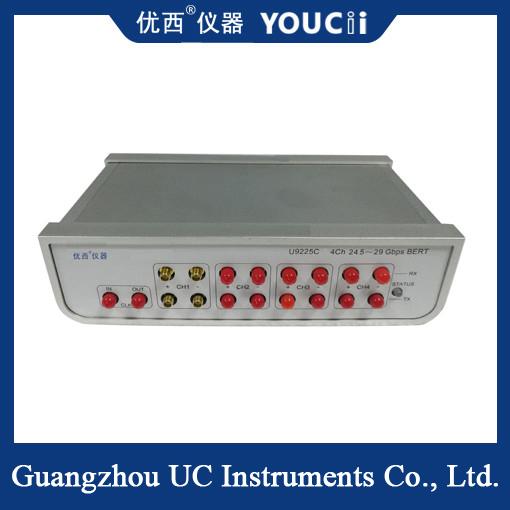

The U9225C 4 Channel 24.5 ~ 29.0 Gb/s (100Gb/s) pulse pattern generator and error detector is a high performance, flexible and cost effective four channel Pulse Pattern Generator and Error Detector that can operate from 24.5 Gb/s to 29 Gb/s each Channel. 4 channel 29.0 Gb/s make it total up to over more than 100 Gb/s testing capacity. It is also a standalone Bit Error Rate test solution that incorporates an internal full rate clock synthesizer.

Its small size allows it to be placed close to the Device Under Test (DUT), it can also be placed further away using the TX driver pre and post emphasis controls features to compensate for cable and interconnect losses. It also has a non destructive, integrated eye outline capture feature along with a quick eye height and width measurement capability.

Features

 Four channel NRZ PPG and ED
 12.25-14.5 and 24.5-29 Gb/s
 Typical JRMS of 1 ps and JPP of 6 ps
 PRBS 2^7, 9, 15, 23, 31
 Eye monitor
 Internal clock synthesizer
 PPM offset control
 Adjustable clock output
 External clock input
 TX level 200 to 1100 mV PPDIFF
Pre and Post cursor emphasis (6 dB)
 Cross-Point Adjustment (35 to 65%)

Specification

Absolute Maximum Ratings Symbol Min. Typ. Max. Unit Notes
Storage Temperature Ts -20 – 70 °C
AC Voltage Range VAC 90 – 246 VAC
AC Voltage Frequency Range VFREQ 47 – 63 Hz
Data RF Voltage Input VinData -0.3 – 1.2 V
Clock In Voltage Input VinClk 0 – 1.2 V
USB Pin Voltage VinUSB -0.3 – 5.5 V
RF and Clock ESD HBM RFesdH -1000 – 1000 V
RF, Clock and USB Latchup Vl -100 – 100 mA
USB ESD HBM USBesdH -2000 – 2000 V
USB ESD CDM USBesdC -500 – 500 V
Electrical Characteristics Symbol Min. Typ. Max. Unit Notes
Case Temperature Tc 5 – 45 °C
AC Supply Current Icc 0.75 200 – mA
Baud Rate (NRZ format) BR 12.25/24.5 14.5/29 Gb/s
Baud Rate Setpoint Accuracy BRa -10 – 10 PPM (Note 1)
Baud Rate PPM Offset BRo -999 – 999 PPM 1 PPM step size
Power On Initialization Time Ton – – 15 Seconds
Eye Phase Steps EMp – – 128 Steps .16 pS per unit
Eye Amplitude Steps EMv – – 64 Steps 8 mV per unit
Note 1: Aging, Temperature and Voltage
