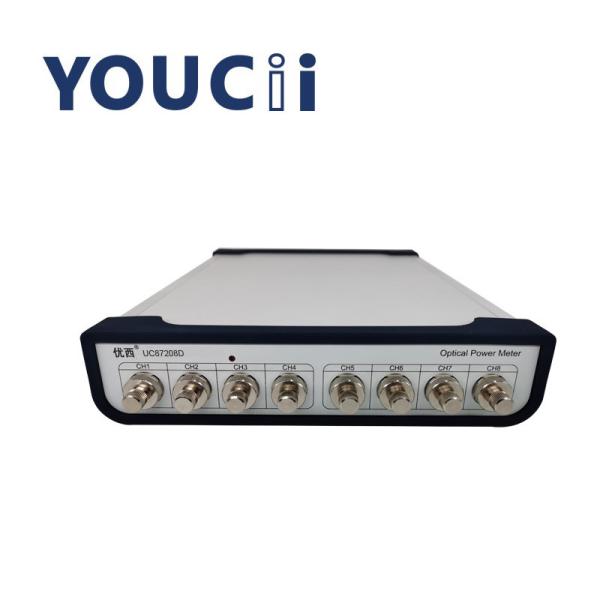

8 Channel Optical Power Meter 850/1310/1490/1550/1610 Calibration Wavelength

UC872xxD Multi Channel optical power meters offer superior performance for general purpose of fiber optical test and measurement applications. It is specifically designed for use in high volume production lines.

UC872xxD Multi-Channel optical power meter test systems are efficient, compact sized, fast-starting, and affordable. Guangzhou UC can provide low power, high power 8/12/16 channel optical power meter for choice, and can also provide up to 64 channel combination test system for customers.

Specifications

FAQ
Q: Are you a factory manufacturer?
A: Yes we are manufacturer with 13 years experience in this industry and supplied many good quality products.
Q: Where is your main market?
A: Asia, Europe, America, Middle-East, Africa and other countries and regions.
Q:What is your minimum order quantity (MOQ)?
A: As a standard policy, we accept MOQ of 1set, and mixed items available, it still needs to confirm with our sales according to different product lines.
Q: Can I customize the size and color of the case?
A: Yes. We can discuss it .
Q: Can I buy some samples first before main orders? Is the sample fee refundable?
A: Yes, sample fee and shipment fee should be paid in advance .
Q: How long is the Production Lead Time?
A: 5 days for stock products, different products have different delivery times, according to the actual situation.

The power supply requirements
The UC872xxD complies with overvoltage Level II regulations. The operating voltage is 100 ~ 240V AC voltage, the frequency range is 48 ~ 66Hz, the operating voltage is 115V, the maximum consumption current is 230mA; When the operating voltage is 230V, the maximum consumption current is 120mA.

USB port
The USB interface is a standard 4-core B-type interface, which can be connected to UC872xxD and PC, and the instrument can be controlled by monitoring software.

USB connection cable
The length of the USB cable cannot exceed 5 m. Otherwise, only a third-party USB peripheral extender can be used. Generally, the maximum extension length can reach 50 m.
RS232 serial port
The serial port parameters of the instrument are set to a fixed value. The serial port parameter Settings of the computer must match the instrument parameter Settings.

RS232 interface pin definition
