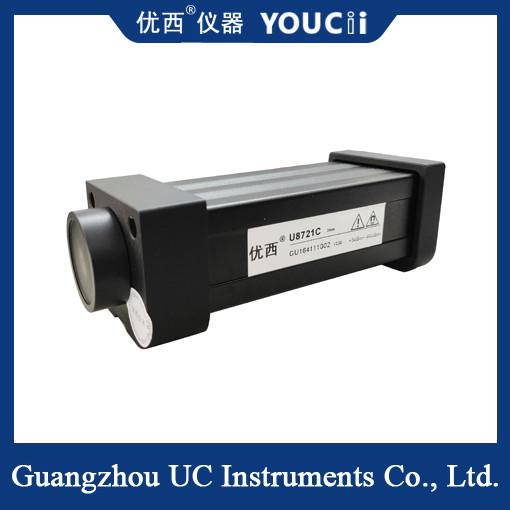

Optical Power Meter Probe High Stability Small Size +5~-80dBm
Optical Power Meter Probe High Stability Small Size +5~-80dBm
Specifications
Brand Name :
YOUCii
Model Number :
U8721C
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiate price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20pcs / month
Delivery Time :
20 work days
Packaging Details :
Paper Box
Battery :
300 hours
Calibration Wavelength :
633 nm
Weight :
0.5kg
Power Supply :
9 V battery or USB
Product :
Optical Power Meter
Power Linearity :
±0.02 dB
Dimensions :
52mm H,60 mm W,150 mm D
Description

Optical Power Meter Probe High Stability Small Size +5~-80dBm

Based on the photoelectric conversion principle, the optical power meter probe converts the optical signal into an electrical signal for measurement. The core component is a photodetector. When the light signal is illuminated on the photodetector, the photocurrent is generated, and the power of the optical signal can be calculated by measuring the size of the photocurrent. In addition, optical power meter probes often have signal processing circuits for amplifying, filtering, and digitizing the photocurrent to improve measurement accuracy and stability.

Optical power meter probes are widely used in optical communication, optical fiber sensing, optical cable construction, maintenance and CATV. In optical fiber transmission systems, optical power meter probes can be used to measure the transmit power, receive power and fiber link loss of optical signals, so as to evaluate the performance of optical networks. In addition, in the field of optical fiber sensing, the optical power meter probe can also be used to measure the optical power output of the optical fiber sensor, which provides a basis for the performance analysis of the sensor.

Specification

Product model U8721C
Sensor Element InGaAs
Wavelength Range 850 ~ 1700 nm
Calibration wavelength 980/1310/1490 / 1510~1640nm Continuous calibration
Power Range + 5 ~ -80dBm
Power sampling period(Rate) 10 us(100KHz)
Application Fiber Type Standard SM and MM
optical Input Interface Supporting bare fiber joint or FC/LC/SC Adapter
Absolute Uncertainty (accuracy) at reference condition ± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition ＜ 0.02 dB Typical value
Linearity (power) ≤± 0.06dB (1200 ~ 1610 nm, + 0 ~ -60dBm)
Return Loss ＞ 40 dB
Communication Interface USB + trig USB + Trig + BNC Analog quantity
Calibration period 2 years
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Dimensions 52mm H,60 mm W,150 mm D
Weight 0.5kg

Matters needing attention
When using the optical power meter probe, you should comply with the operating specifications in the product manual to avoid damage or inaccurate measurement results caused by improper operation.


The optical power meter probe is calibrated and maintained regularly to ensure its measurement accuracy and stability.


During storage and transportation, attention should be paid to protecting the optical power meter probe from mechanical damage and moisture.
