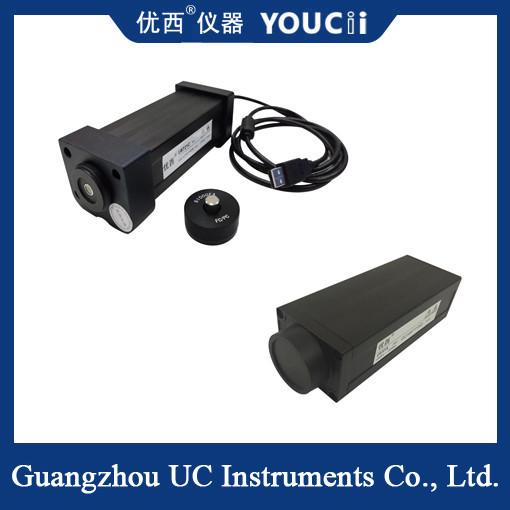

USB Fast Scanning High - Precision Optical Power Meter Probe +5~-80dBm
USB Fast Scanning High - Precision Optical Power Meter Probe +5~-80dBm
Specifications
Brand Name :
YOUCii
Model Number :
U8721C
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiate price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30pcs / month
Delivery Time :
20 work days
Packaging Details :
Paper Box
Description

USB Fast Scanning High-Precision Optical Power Meter Probe +5~-80dBm

Functional characteristics
USB interface connection:
It is connected to computer through USB interface to realize real-time data transmission and reading.
Support plug and play, easy for users to quickly connect and use.


Quick scan function:
With high-speed sampling capability, multiple measurements of optical power can be completed in a short time.
It is suitable for optical power measurement scenarios that require real-time monitoring and fast response.


High precision measurement:
The probe adopts high performance photoelectric conversion device, which can realize high precision optical power measurement.
The measurement range is wide and can cover different light wavelengths and power ranges.


Strong compatibility:
Compatible with a variety of fiber types, such as single mode and multi-mode fiber.
Supports different optical input interfaces, such as FC, LC, SC adapter interfaces.

Specification

Product model U8721C
Sensor Element InGaAs
Wavelength Range 850 ~ 1700 nm
Calibration wavelength 980/1310/1490 / 1510~1640nm Continuous calibration
Power Range + 5 ~ -80dBm
Power sampling period(Rate) 10 us(100KHz)
Application Fiber Type Standard SM and MM
optical Input Interface Supporting bare fiber joint or FC/LC/SC Adapter
Absolute Uncertainty (accuracy) at reference condition ± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition ＜ 0.02 dB Typical value
Linearity (power) ≤± 0.06dB (1200 ~ 1610 nm, + 0 ~ -60dBm)
Return Loss ＞ 40 dB
Communication Interface USB + trig USB + Trig + BNC Analog quantity
Calibration period 2 years
Operation Temperature 0 ~ +40℃
Storage Temperature -30 ~ +80℃
Dimensions 52mm H,60 mm W,150 mm D
Weight 0.5kg

USB fast scanning optical power meter probes are widely used in the following areas:

Optical fiber communication: used to measure the optical power in the optical fiber communication system and monitor the signal transmission quality.
Optical testing: Used in optical laboratories to measure the performance of optical devices, such as lasers, optical amplifiers, optical attenuators, etc.
Optical network monitoring: Used to monitor the change of optical power in the optical network in real time to ensure the stable operation of the network.
Scientific research: In the field of optics, optoelectronics and other research, used to measure and analyze the changes and characteristics of optical power.
