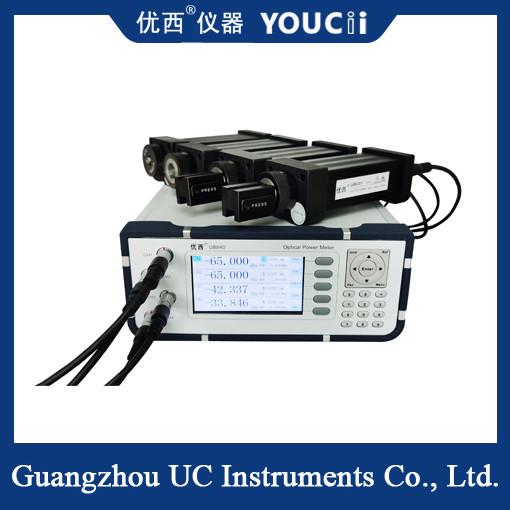

High Precision Optical Power Meter Probe Liquid Crystal Display Power
High Precision Optical Power Meter Probe Liquid Crystal Display Power
Specifications
Brand Name :
YOUCii
Model Number :
U8840+4*U8820X
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiate price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20pcs / month
Delivery Time :
20 work days
Packaging Details :
Paper Box
Connector Type :
FC/APC（Other Adaptor Can Be Customized）
Storage Temp :
-30～+80 ℃
Detector Type :
InGaAs
Display Type :
LCD
Storage Temperature :
-20°C to 70°C
Temperature Operating :
–10 °C to 50 °C
Supply Voltage :
100~240V
Description

High Precision Optical Power Meter Probe Liquid Crystal Display Power

Main feature
High-precision measurement: Four-channel probe external optical power meters usually use high-precision photodetectors and analog-to-digital converters, which can achieve accurate measurement of optical signal power.


Fast response: The instrument has a fast response speed and can quickly capture the change of the optical signal, which is suitable for dynamic measurement scenarios.


Multi-channel design: With four independent measurement channels, the optical signal power of four different optical paths can be measured at the same time, improving the measurement efficiency.


Easy to operate: Usually equipped with an intuitive user interface and friendly operating software, making it easy for the user to set up the instrument and read the data.

Model U88201 U88202 U88203 U88204
Detector type Single channel InGaAs
Operating wavelength range 850 ~ 1700 nm
Power measurement range +5 ~ -80 dBm +15 ~ -70 dBm +25 ~ -60 dBm +10 ~ -55 dBm
Power sampling period ≥0.01ms
Application fiber type Standard single mode and multi-mode fiber, fiber core diameter up to 62.5 um
Absolute accuracy ± 4% (1200 nm ~ 1610 nm)
Relative accuracy < 0.02 dB Typical value
Power linearity ≤ +/- 0.02 dB (1200 nm ~ 1610 nm, + 0~ -60 dBm)
Return loss > 40 dB
Calibration cycle 2 years
Optical input interface Supports optical fiber clamping or FC/PC connector insertion Written test space reception
Communication interface Seven core cable
Operating temperature 0 ~ +40℃
Storage temperature -30 ~ +80℃
Overall dimension 155 mmL,60 mmW,52mm H
Weight 0.5 kg
Application field
Optical communication: In the optical fiber communication system, the four-channel probe external optical power meter can be used to measure the signal strength of each node, help regulate the transmission and reception of optical signals, and ensure the stability and reliability of the communication system.
Optical fiber sensing: In the field of optical fiber sensing, the instrument can be used to measure parameters such as optical fiber connectors, optical fiber attenuation, and for applications such as temperature sensors, pressure sensors and strain sensors, by measuring the bending degree and bending direction of the optical fiber to reflect the change of the measured object.
