MDPE Outdoor 24 Core GYTS Duct Optical Fiber Cable
MDPE Outdoor 24 Core GYTS Duct Optical Fiber Cable
Specifications
Brand Name :
HG or OEM
Model Number :
GYTS
Certification :
ISO9001
Place of Origin :
China
MOQ :
2KM
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000KM Per Day
Delivery Time :
5-7 working days
Packaging Details :
3KM/Drum
name :
outdoor fiber cable
Model NO. :
GYTS
Cores :
2-288 Core
Warranty :
2Years
Outer Jacket :
MDPE / HDPE / LSZH PE
Central Stranden Member :
Steel Wire or FRP
Core Moisture Protection Methodology :
Water Blocking Tape or Filling Compound
Installation Style :
Duct,Aerial
Description

Outdoor GYTS Fiber Optic Cable 24Core Duct Optical Fiber Cable

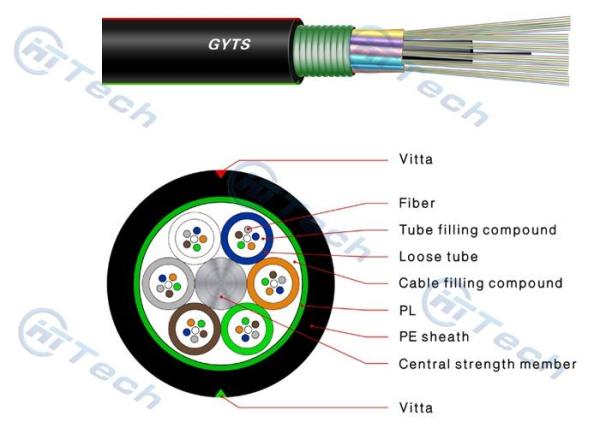

Structure characters:

Metallic strengthen member

Single coated PE corrugated steel tape under PE sheath

Properties: Armored steel tape providing maximum ,anti-crush property.

Bullet resistance performance

Recommended laying methods--Aerial, Duct

Applicable fields:

Long distance communication and LAN

Technical Data

Fiber range Cable outer diameter Cable weight Min.bending radius Allowable tesion(N) Max.crus loading force(N/1000mm)
Static Dynamic Short term Long term Short term Long term
2-30 9.8 115
32-36 10.6 140
38-60 11.0 140 10 times cable diameter 20times cable diameter 1500 600 1000 300
62-72 11.6 165
74-96 13.2 205
98-120 14.7 245
122-144 16.1 285
146-216 16.6 300
218-240 19.8 395
242-288 22.0 470

Product show
Note: Fiber Tube color will be followed with same order.
