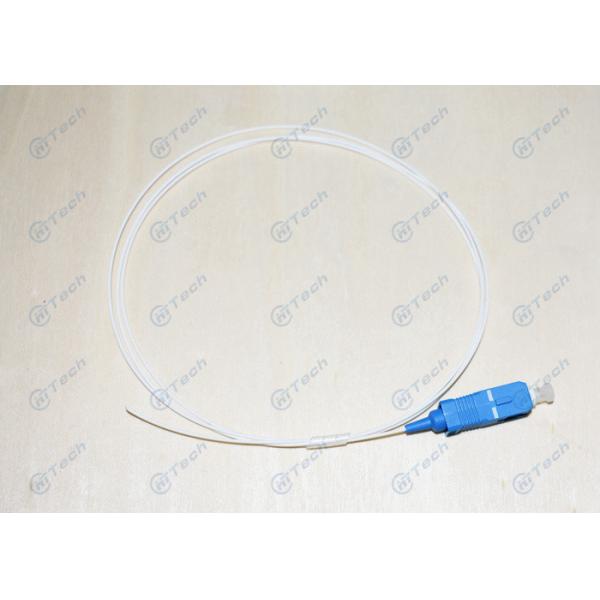

0.9MM Simplex SC SM Pigtail , SC UPC Pigtail With Inner Ceramic Ferrule
0.9MM Simplex SC SM Pigtail , SC UPC Pigtail With Inner Ceramic Ferrule
Specifications
Brand Name :
HG or OEM
Model Number :
SC Pigtail Fiber Optic 0.9MM
Certification :
ROHS,ISO9001
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000pcs Per Day
Delivery Time :
3-5working days
Packaging Details :
1pc/PE Bag
name :
SC SM Pigtail
Manufacturer :
Yes
Quality :
Telcordia GR-326-Core, IEC Standard
Fiber Type :
Simplex and Duplex, G652D, G655, anything, SM or MM
Test :
100% Test Before Shipping
Connector type :
SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO
Samples :
Support
Description

SC Pigtail Fiber Optic 0.9MM Fiber Optic Pigtail Single Mode Simplex

The 9/125μm single mode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.

HG also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

Feature:

(1) Inner: Ceramic Ferrule

(2) Telcordia’s GR-326-Core, IEC Standard

(3) Green Production, RoHS Standard

(4) Excellent Polished and 100% tested.

(5) High stability various environments

(6) Customize order available

Items Details:

Fiber Optic Patch Cord / Fiber Optic Pigtail
Feature:
(1) Inner: Ceramic Ferrule
(2) IEC Standard
(3) Green Production, RoHS Standard
(4) Excellent Polished and 100% tested.
(5) High stability various environments
(6) Customize order available		 Mode SM MM
Polish UPC PC
Insertion Loss Typical ≤0.2dB ≤0.3dB
Maximum ≤0.3dB
Return Loss ≥50dB (UPC),≥60dB (APC) ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times)
Vibration ≤0.2dB (550Hz 1.5mm)
Tensile Strength > 10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)

0.9MM Simplex SC SM Pigtail , SC UPC Pigtail With Inner Ceramic Ferrule

Available :

Simplex/Duplex patch cord available

Fan-out available

Pigtail available

Various boot(cable) sizes available

FC/LC/SC/ST/MTRJ/MPO connectors available

LSZH and PVC cable

1. Jacket Material:

0.9MM Simplex SC SM Pigtail , SC UPC Pigtail With Inner Ceramic Ferrule
0.9MM Simplex SC SM Pigtail , SC UPC Pigtail With Inner Ceramic Ferrule


4. Customize Cable Length: 0.5M/1M/2M/3M/5M to 100M

5.Packing:

0.9MM Simplex SC SM Pigtail , SC UPC Pigtail With Inner Ceramic Ferrule
